Buffered Stereo Mixer Eurorack Module
Free Shipping
from Erie, PA
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb

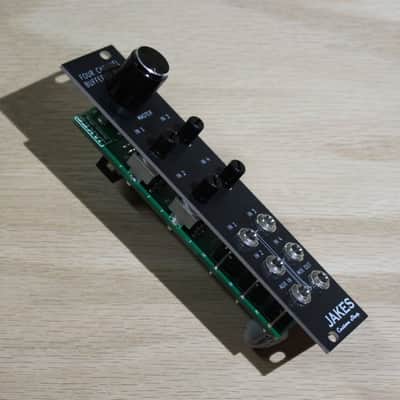

The Jake’s Custom Shop Buffered Mixer is a general purpose five-channel active mixer. Four main inputs have individual volume control. A fixed, unit-gain auxiliary input is also available. All 5 inputs are controlled by a singular master volume control. All inputs have a maximum gain of 1 V/V.
-Buffered audio inputs with volume control by corresponding potentiometers.
-Auxiliary input
-10-Pin shrouded IDC
-Mixed output controlled by Master volume potentiometer
Low Current Draw:
+12V: 11.4mA
+5V: 0mA
-12V: 11.3mA

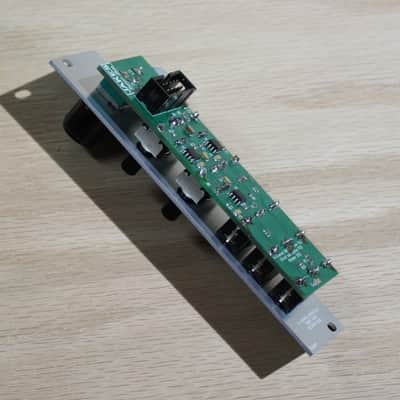

PCB dimensions: 29 x 106.5 mm
Panel dimensions: 30 x 128.5 mm (6HPX3U)
Depth of panel: 25 mm
The datasheet can be found on the JakesCustomShop website
