d&b Audiotechnik Q1 (2 Way Line array Loudspeaker) * ONE *

For Sale is One

d&b Audiotechnik Q1 (2 Way Line array Loudspeaker)

Condition description

- Great Sounding Speakers

- In Great condition and good working order

- Pulled from our working production line to make room for new speakers

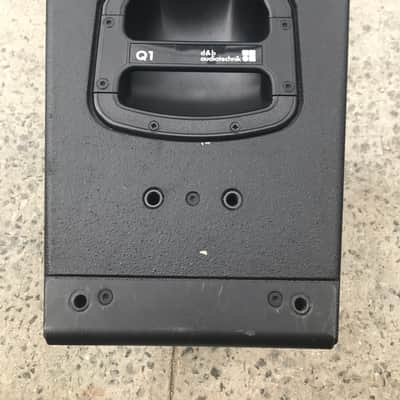

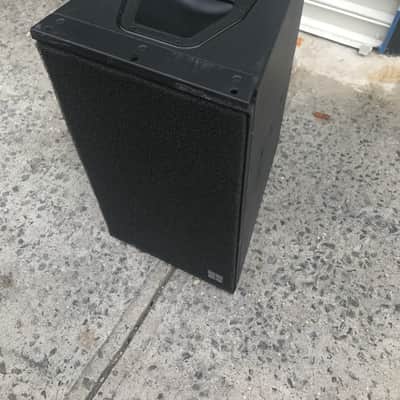

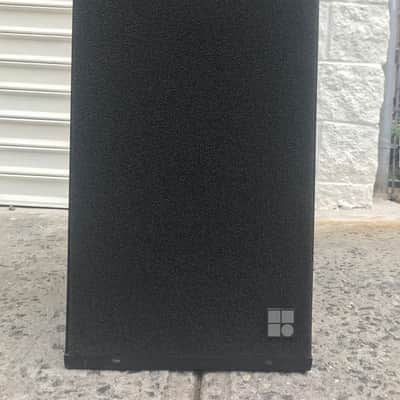

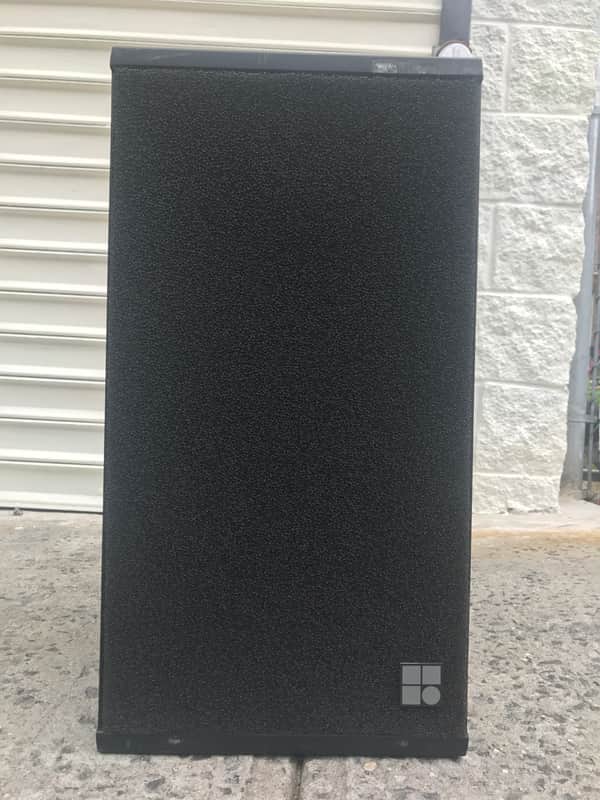

- Each Sale is for one speaker shown in the photo but we have a total of 24 for sale

Q1 loudspeaker
The Q1 is a passive 2-way loudspeaker housing two 10" LF drivers positioned in a dipolar arrangement and a 1.3" HF compression driver fitted to a toroidal waveshaping device. The 75° constant directivity horizontal dispersion pattern is maintained down to 400 Hz, while the vertical HF dispersion of 15° allows the Q1 to be used to construct vertical columns that produce a curved coherent wavefront. The mechanical and acoustical design of the cabinet enables vertical splay angles to be set between 0° and 14°. Q1 cabinets can therefore be used in vertical configurations starting from two cabinets with a 15° to 30°

Data
Components 2 x 10" driver/1.3" compression driver
Max. sound pressure (1m, free field)1
with D6
with D12/D20
with D80
135 dB SPL
139 dB SPL
139 dB SPL
Power handling capacity (RMS/peak 10 ms) 400/1600 W
Frequency response (-5 dB) 60/1002 Hz - 17 kHz
Nominal dispersion angle (h x v) 75° x 15°3
Cabinets per channel D6/D12/D20/D80 2

Dimensions mm (H x W x D) 308 x 580 x 410
Weight kg 22
Dimensions inch (H x W x D) 12.1 x 22.8 x 16.1
Weight lb 49
