NEW Frequency Central Shapes (VCO/LFO) for Eurorack Modular

Seller notes:
Listing is for a single NEW Frequency Central Shapes in brand new condition for the following piece(s) of equipment: Eurorack Modular. Madisynths is an official Frequency Central dealer. We stand behind these fantastic modules as long time users, with about half of our personal racks consisting of FC synth gear!

“Round” out your modular rack with the compact Shapes module, a 4 HP VCO/LFO that cycles from 11 seconds to above human hearing. It’s retriggerable, so if you need one shot of 10K, this module will have you “squared” away.

Stock Update:
In stock and ready for same day shipping!

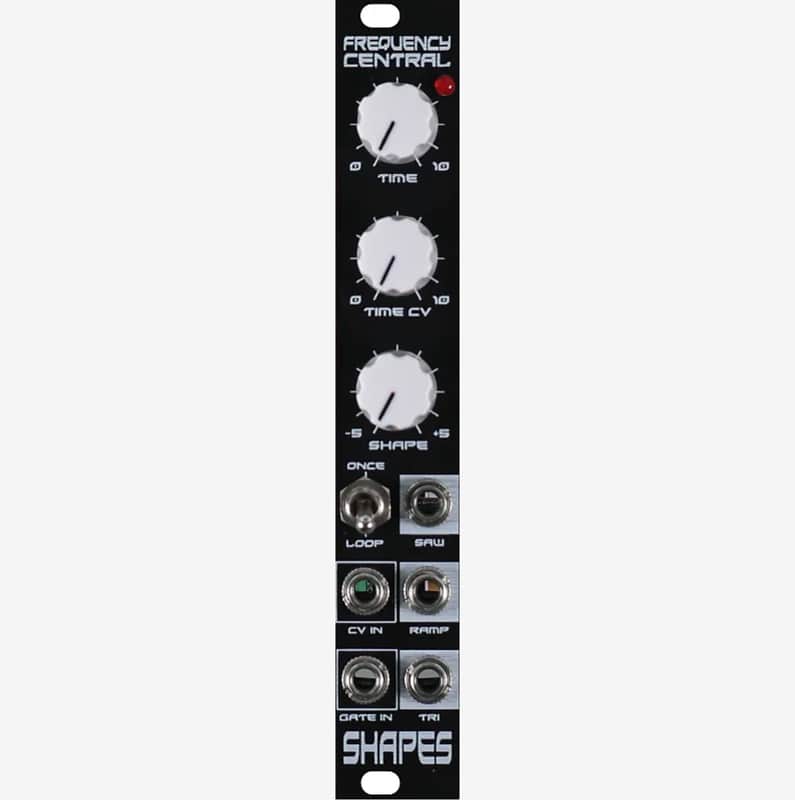

About the Frequency Central Shapes:
Shapes is a wide ranging and fully analogue oscillator which can perform duties as both auxiliary VCO* as well as VC-LFO. Shapes can be configured to cycle continuously, or to provide one-shot shaped outputs. When set to one-shot mode, Shapes may be used as an ersatz envelope generator.

Using the Time knob, Shapes can cycle from as low as 8 seconds (whale song) to as high as 19500Hz (bat beeps).

Shapes has 3 simultaneous outputs:

• Sawtooth (+/-5V, 10Vpp)
• Ramp (+/-5V, 10Vpp)
• triangle (+/-5V, 10Vpp)

Additional waveforms may be derived courtesy of the Shape knob. Counterclockwise from 0 achieves progressively logarithmic sawtooth and ramps, whereas clockwise from 0 achieves progressively exponential sawtooth and ramps. The effect of the Shape knob on the triangle waveform is asymmetric, counterclockwise from 0 achieves progressively logarithmic leading edge, whereas clockwise from 0 achieves progressively exponential falling edge. Progressively exponential  triangle waveforms can be achieved using the Time CV knob (set Shape knob to 0) providing there is no jack in the Time CV input socket.

Time CV input provides wide ranging control of time. It is possible to dial in something approaching 1V/oct over a limited range, although Shapes has not been designed to perform as an accurately tracking VCO. In the audio range, Shapes comes into its own when used as a ‘daughter’ VCO to an external ‘mother’ VCO by patching the ‘mother’ VCO into Shapes’ Gate In input socket – some impressive oscillator sync style effects can be achieved.

Gate In can also be used to initiate waveforms in one-shot mode, where a pulse of any length will cause Shapes to complete one cycle.

* Shapes has not been designed to perform as an accurately tracking audio VCO.

Product specifications:

• Depth      35 mm
• Width    4 HP
• +12V draw   10 mA
• -12V draw  10 mA
• +5V draw    0 mA
