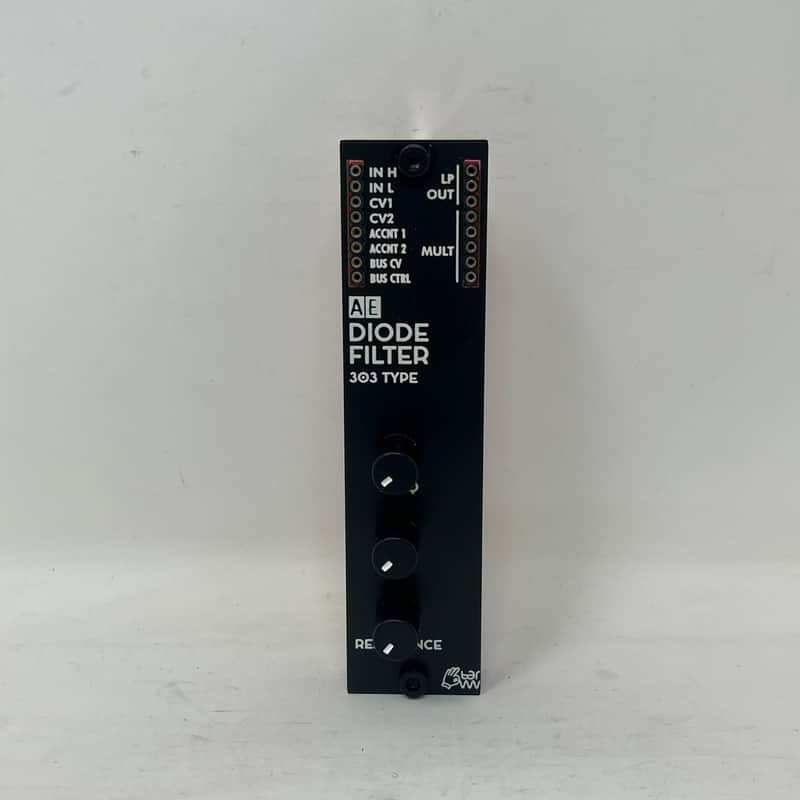

Tangible Waves - DIODE FILTER

The DIODEFILTER is an adaption of the well-known diode ladder filter that became most popular by Roland's TB-303 bassline. And here it is for the AE modular!

Module power consumption: 3 mA

Inputs

• In H - Input for lower level signals
• In L - Input for higher level signals
• CV1 - 0-5V control voltage input whose effect level is controlled by the CV1 knob.
• CV2 - 0-5V control voltage input, with no controlled attenuation within this module.
• Accnt1 -
• Accnt2 -

Outputs

• LP OUT (x2) - The audio signal after being filtered.
• Bus CV - Voltage produced via a midi keyboard connected to the master module.
• Bus CTRL - Voltage produced via a midi keyboard connected to the master module.

Controls

• FREQ - Sets the Cutoff Frequency of the filter
• CV1 - Controls the amount the CV1 input affects the cutoff frequency of the filter.
• RESONANCE - the more this level is increased the more the frequencies around the cutoff frequency are enhanced/ amplified.
