Avedis MA5 in stock at Tidepool! We ship fast!

• Standard 500 series module
• Single-ended Class A amplifier
• UK-made Carnhill/St Ives input transformer
• Custom-designed Jensen output transformer
• Stepped-gain rotary switch in 5dB steps
• Output level pot for trim and mute
• LED-lit push-buttons
• 28kHz feature brings out high frequency detail
• Custom-made Marconi-style knobs
• High headroom & CMR, low noise design

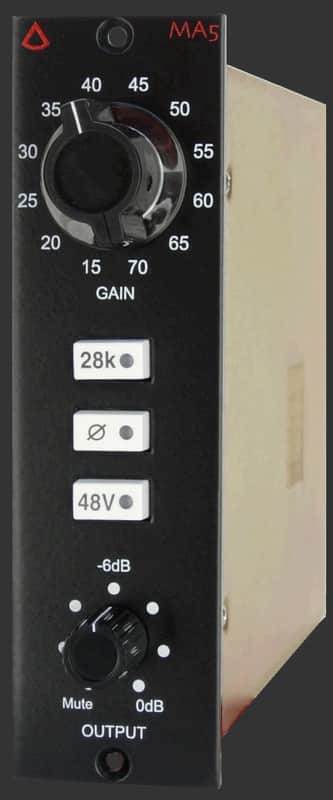

The MA5 is a high-quality microphone preamplifier with the characteristic sound of early ‘70s British Class-A consoles. The re-engineering in the creation of the MA5 stemmed from years of experience restoring both American and British modules, deeply rooted in classic transformer-balanced, discrete electronics. Only the best and most suitable components are used throughout, regardless of cost, to attain the best sound.
Over a year was spent on the MA5- not only on the engineering side of the design, but also in extensive sound evaluation with observation of specific settings, gain structures, and key components.

We have always believed that our ears’ sensitivity coupled with experienced judgment of sound is still unparalleled - even with some of the best audio test analyzers which we own and use. In the end, it is our ears we are trying to satisfy.

The MA5’s full and open sound is due to a rich harmonic content, particularly in the very low frequencies- even down to 10Hz. The clear mids and smooth highs come through without sounding dull or smeared.

 Fill up your 500-series lunchbox with these rich-sounding Avedis preamps!

Frequency Response<10Hz to -3dB at 67kHzInput Impedance≅1250 ohmsOutput Impedance<75 ohms, bias variableCommon Mode Rejection Ratio>100dB min @ 60HzMaximum Output Level+32.2 dBu @ 100KΩ, +27 dBu @ 600Ω bias variablePower Requirements±16 vdc @ 75mA per railGain Voltage0 to 33.4 VoltsGain dB0 to 71.2 dBEquivalent Input Noise−110 dBu; Unweighted 300kHz bandwidthWeight
