After Later Audio DVCA Dual VCA
This seller has not set a shipping cost for Denmark. Please contact them to ask about shipping.
Our users rate Reverb
Purchased new, never left my smoke free studio. Ships with power cable. Box included. Slight rack rash.
Description:

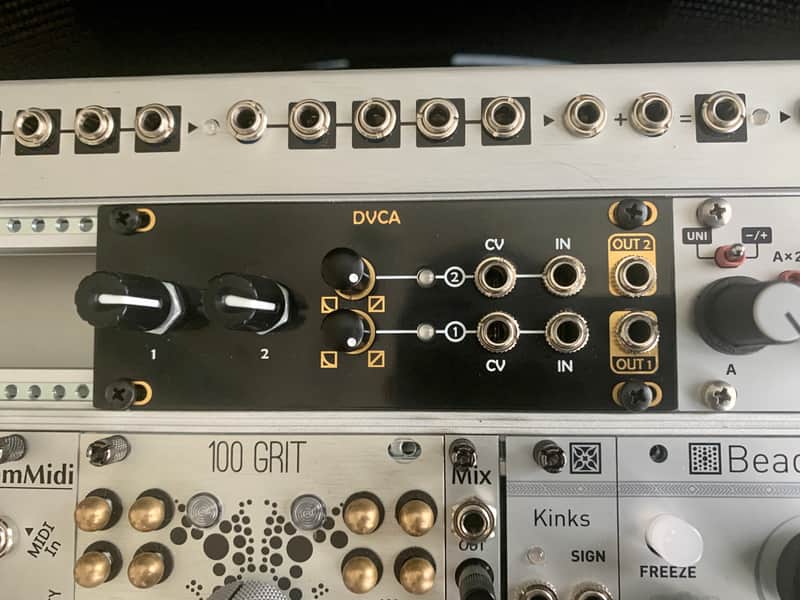

DVCA is a dual VCA based on the Mutable Instruments Veils. It features two separate voltage controlled amplifiers, both with a gain and a response curve potentiometer, that is variable from linear to exponential. The outputs are normaled, so when no patch cable is present on output 1, output 2 will contain both signals, allowing the module to be used as a mixer.
The DVCA can be chained together with other DVCAs to make a multi-channel mixer. On the back there are 2 single pins (one on the left side and one on the right) that will say IN and OUT on the PCB. If the DVCAs are side by side you can use a jumper to connect them, or you can use a female-female dupont cable with 2 female ends to connect them if you’d like to spread them out throughout your case.
Comes with jack lights that can be disabled via a jumper on the back.
Based on open source designs by émilie gillet under Creative Commons (CC-BY-SA) license.
Width: 4hp
12V: 17mA
-12V: 17mA
| Listed | 4 years ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Synth Module Function |
|
| Modular Synth Format |
|
| Horizontal Pitch |
|
