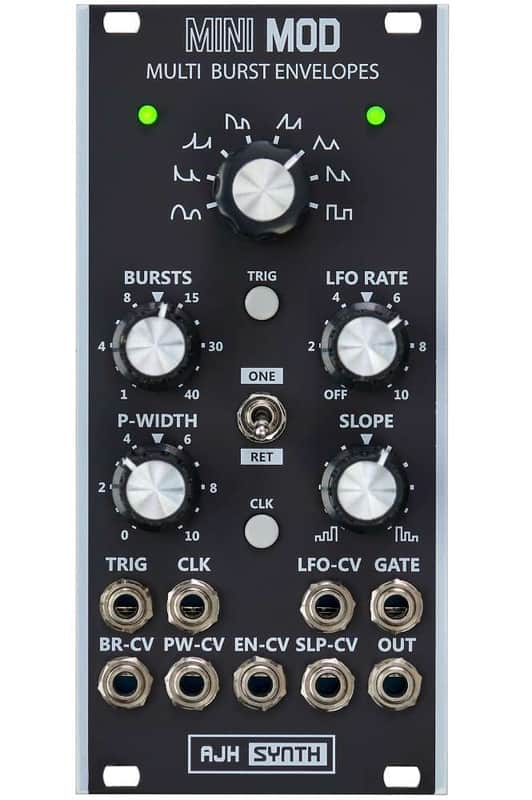

AJH synth multi burst envelopes

AJH's Multi Burst Envelopes is a clockable, shapable, repeating env-modulation-monster.

From repeating envelopes of variable length, Multi Burst Envelopes creates complex envelope burst sequences that would otherwise not be possible without complex patching with multiple modules. The Bursts switch lets you select a "burst sequence" from 1-40 individual envelopes whose shape is selected by rotary switch. Via CV control it is possible to assign a different envelope shape to each individual burst. The repetition time of the individual bursts can be set with the LFO control and can also be varied via CV, which can slow down or speed up the interval between the individual envelopes. In addition, the burst frequency can be triggered externally in two different modes as a burst sequence instead of, or together with, the internal LFO.The slope control lets the burst start quietly and swell to maximum level and vice versa. With only 12 HP the module is an extremely compact solution to generate complex modulation sequences.

Features:

• Burst-Envelope generator


• 8 different envelope shapes


• 1-40 Envelope segments


• 2 trigger modes: One-shot and Retrigger


• LFO Rate for internal clock


• CLK-Button and CV for triggering bursts manually
