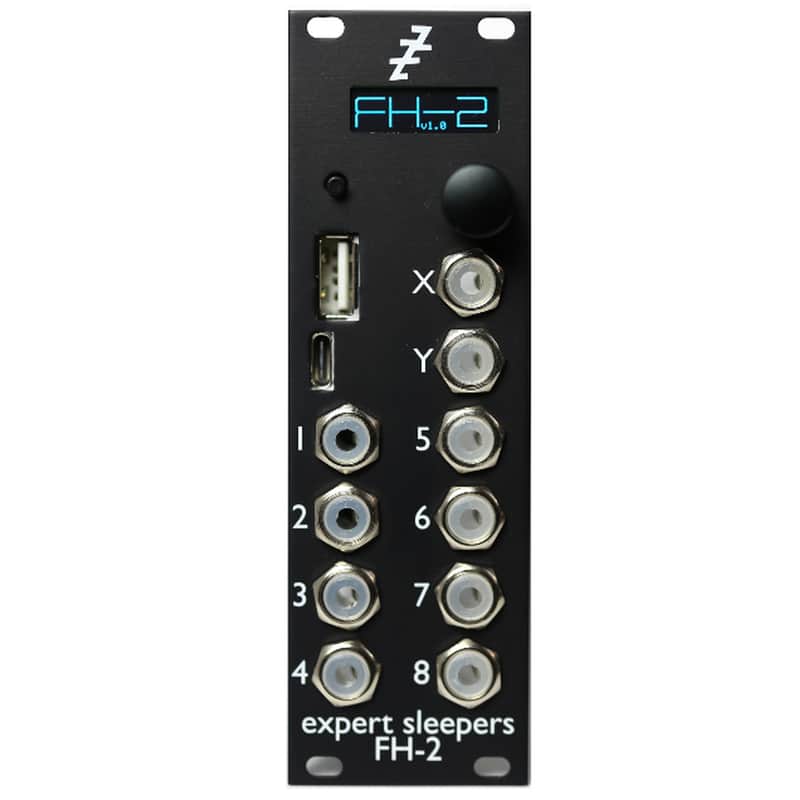

The FH-2 is an 8HP Eurorack module combining the following functions:

• MIDI to CV conversion including polyphonic and MPE operation.
  • The FH-2 is simultaneously a USB MIDI host, a USB MIDI device, and also supports traditional 5-pin DIN MIDI.
  • Support for drum triggers including triggers with velocity or accents.
  • Support for automatic VCO calibration (similar to that in silent way).
• Clock generation and synchronisation.
  • MIDI clock (in and out), analogue clock (in and out), or internal clock (BPM or tap tempo).
• LFO generation, including tempo-synced LFOs.
• Arpeggiators.
• Euclidean pattern generators.

The FH-2 has 8 high precision CV outputs, expandable to 64 with the FHX-8CV Expander. Up to 64 additional gate/trigger/clock outputs can also be added with the FHX-8CV Expander.

The module can be completely configured via its own UI, but a convenient web-based configuration tool is also available, which communicates with the module directly via MIDI SysEx.

The FH-2's specifications are as follows:

• Panel width: 8HP
• Module depth: 48mm
• Current draw: 118mA on the +12V rail, 48mA on the -12V railplus
   the power requirement of any attached USB device.
   for information on calculating the current draw on the +12V rail from the USB device.
• Outputs: 8
  • Digital-to-analogue conversion: 14 bit
  • Voltage range: software selectable between ±5V, 0-10V
• Inputs: 2 CV inputs
• USB host:
  • Type A connector
  • Class Compliant USB MIDI host.
  • Class Compliant USB HID host (for mice, gamepads etc.).
  • Supports USB hubs.
• USB device:
  • Type C connector
  • Class Compliant USB MIDI device (plug'n'play with macOS, Windows, Linux and iOS).
• Expansion:
  • Header for connecting FHX-8CV or FHX-8GT expanders.
  • Header for 5-pin DIN MIDI via a compatible breakout.
  • An FH-1 may also be used as an expander, over USB.
• Controls: 1 rotary encoder (with push button), 1 push button
• 0.91" OLED display
