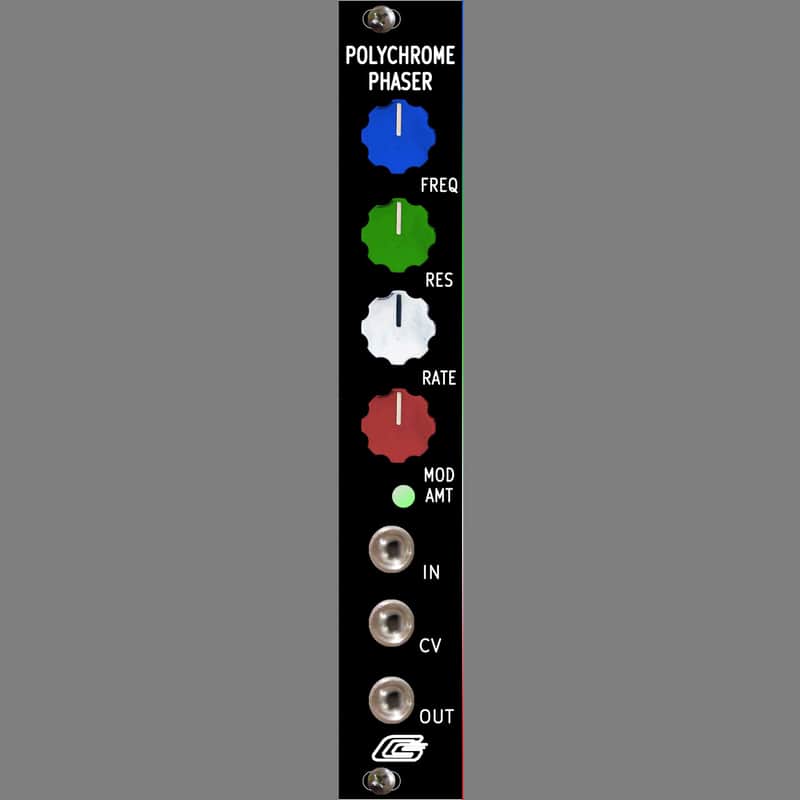

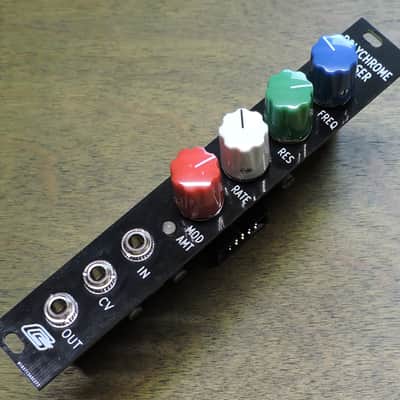

G-Storm Electro Polychrome Phaser Eurorack Analog Effect

Re-live the psychedelic 70s w/ the throwback Polychrome Phaser.  4HP analog circuit adaptation of the 6-stage phaser section from the Italian stallion - Farfisa Polychrome.

FREQ | the initial frequency of the phaser

RES | the depth of the phaser effect

RATE | the speed of the internal LFO, range from X hz to X Khz

MOD AMT | how much the internal LFO will affect the frequency.  If an external signal is plugged into the CV input, this knob will instead control how much that external signal will affect the frequency.

MOD AMT LED | red/green bi-polar activity indicator of internal LFO or external CV

IN JACK | your audio goes in here

CV JACK | use an external signal to control the frequency, thus bypassing the internal LFO

OUT JACK | the audio output of the phaser

TR1 | trimmer for initial Frequency adjustment

TR2 | trimmer for LED adjustment

INCLUDED | a 10-pin to 16-pin Eurorack ribbon connector
NOT INCLUDED | M2.5 or M3 (Doepfer standard) Phillips-head basic zinc rack screws are only provided on special request. Why do I do this? To cut down on rack screws that are wasted in the universe. What's it gotta be? Thousands? Hundreds of thousands? Unused, unwanted. You know the ones I mean | wrong size, wrong color, cheap junk tin, top slot-stripping, rack-rashers, wrong thread count, wrong length, wrong political party, etc. I use thumb screws in 2 sizes myself. So yeah, if you request some M3's from me, I will probably pull the ones from other companies boxes in my closet. You're welcome :D

SPECS
4HP Module width
47 mm Module depth
33 mA on +12V
34 mA on -12V

0ma on 5V (not used)

The Polychrome Phaser pairs well with other modules sold seperately:

• With 2 phasers you can input LFOs from XAOC Batumi for stereo and polyphase action!
• G-Storm Electro 101-VCO
• Digital oscillators like Pittsburgh DNA Symbiotic Waves and SE Grainy Clampit
• GSE 2xADSR – use envelope CV for some deep bass modulation
• Sample Player module like Erica Synths Sample Drum
