Midas Siena 480 Black 48-Channel, 16-Bus Sound Reinforcement Mixing Console (Tour Package)

Midas Siena 480

48-Channel, 16-Bus Sound Reinforcement Mixing Console (Tour Package) In good condition, 1 channel is dead. Very clean all around.

Acquired 2 years ago in exact condition. Very light studio use only, works excellent. All functions perform as they should. Sounds fantastic!

Console is available for pickup in the Old Brooklyn area of Cleveland, OH. Pickup only, no shipping.

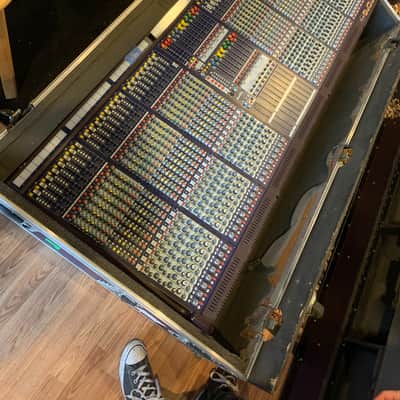

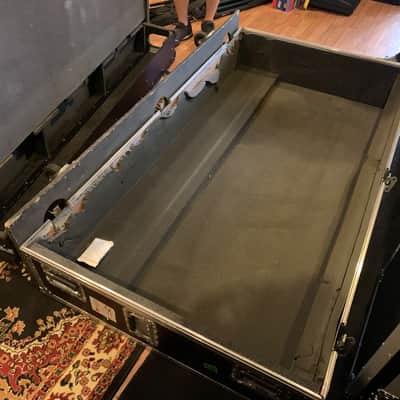

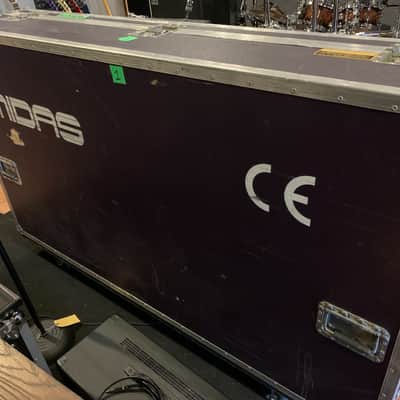

Listing is for (1) Midas Siena 480 mixer with AC power cables and travel/storage case.

DESCRIPTION

Length: 71.30” (1811.00mm)

Weight: 165.34 lbs (75kg)

The Midas SIENA Mixing Consoles are designed to perform dual duty as both, a live front-of-house (FOH) sound reinforcement console or flexible monitor mixing console. The SIENA is available in a variety of frame sizes and this console features a total of 48 mono input channels and up to 16 mix bus outputs for flexible routing in any application.

As true with all Midas consoles, the SIENA features superb audio performance, and increased functionality with features that include an advanced Solo Tracking System, switched inserts on outputs, and a powerful logic controlled solo system.

The output section features a stereo Master and 16-bus outputs for routing auxiliary signal to monitors, external processing and much more. All channels feature a powerful 4-band EQ section with swept-frequency bands and hi-pass filter. The SIENA is sure to deliver the performance and quality expected of Midas, while remaining cost-effective and straightforward.

48 Mono Inputs The SIENA is available is a variety of channel frames, this console features 48 mono inputs and 16 bus outputs. 16 Bus Outputs The available bus outputs provide flexible routing to monitors, effects, etc. Solo Tracking System The Solo Tracking System allows any of the 16 master, or stereo master solos to trigger auto-solo messages on the Klark Teknik DN9340 Helix EQ.

SIENA FEATURE SET

• PREMIUM QUALITY PREAMP
• DIRECT OUTPUTS
• SWITCHABLE INSERT POINTS
• SWEPT HPF
• MIDAS 4-BAND SWEPT EQ
• PREFADE MIX EQ BYPASS
• 16 MIX SENDS/OUTPUTS
• SELF-CLEANING 100mm MONORAIL FADER
• 5 “SOFT-CIRCUIT” MUTE GROUPS
• STEREO DIRECT INPUT
• MONO/STEREO CHANGEOVER
• EXTREMELY LOW NOISE
• REDUNDANT PSU CAPABILITY
• ERGONOMIC LAYOUT
• TALKBACK SYSTEM
• STEREO SOLO BUSS WITH MODE SWITCHING
• SOLO TRACKING SYSTEM INTERFACE
• STEREO MASTER OUTPUTS
• CLEAR, COMPREHENSIVE METERING

TOURING (STAGE MONITORING) BENEFITS

• Premium Quality Preamp - The Siena Mic amps can handle input levels up to +21dB. The high CMR means excellent performance with long multicore runs and passive Mic splits.
• Switched Insert Points - Invaluable for quick set-ups.
• Midas 4-Band Swept EQ - Siena EQ has been designed to give the same legendary power, response and “feel” as the world-renown XL and Heritage series consoles. All of which are proven in dual-purpose roles.
• 16 Mix Outputs - All 16 Mix sends are globally switched mono/stereo in pairs. This format combines maximum flexibility with minimum set-up time. The master mix outputs are configurable to suit the mode of operation. Run 16 mono mixes and a stereo mix, or 9 discrete stereo mixes, or any combination of mono and stereo. Mix outputs feature high current output drivers, and can deliver +21dB before clip. Never run out of “drive”.
• Self Cleaning 100mm Monorail Faders - Highly accurate, essential when relying on fader position to show relative levels.
• 5 “Soft-Circuit” Mute Groups - Quick, silent muting/unmuting of multiple inputs and outputs.
• Mono/Stereo changeover - The Mono/Stereo changeover function not only switches the input mix controls from a level/level arrangement to a pan/level arrangement with single pre/post switch per pair, it also reconfigures the associated direct inputs to mono or stereo operation. In addition Mix 1-8 AFL is also reconfigured for mono or stereo operation automatically.
• Redundant PSU Capability - Every Siena console has backup PSU capability. Siena 320, 400, 480, 560 and 640 models have redundancy as standard. Internal PSUs are auto-voltage sensing, current sharing and auto-changeover.
• Talkback system - Talk to individual outputs or multiple outputs simultaneously. External talk line in & out, for linking to other consoles.
• Stereo solo buss with mode switching - For monitor engineers, the ability to know exactly what is happening with multiple remote mixes at any one time is crucial. Siena’s logic solo system provides mono and stereo solo outputs, each with its’ own mute switch, and separate PFL/AFL selection for both inputs and outputs.
• Solo Tracking System - View your outboard KLARK TEKNIK HELIX EQ at the touch of a solo switch. Siena solo buss has an RS232 control interface with KLARK TEKNIK HELIX digital EQ systems.
• Clear And Comprehensive Metering - 16-segment output meters that show each of the 18 master Mix busses simultaneously and four segment LED input meters on all input channels.
