Description:

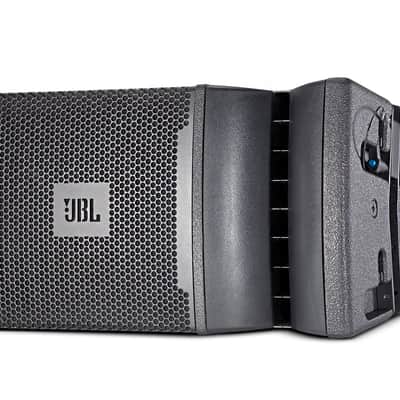

The VRX928LA is a lightweight (28 lb / 13 kg) compact 8" two-way line array speaker system designed for use in arrays of up to six units.

Features:

• Constant Curvature Array - The waveguide mounts two compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.

• Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.

• Suspension and Rigging.

• Dual Angle Pole Socket - JBL's dual angle pole sockets allow great flexibility in aiming the enclosure (not on - WH version)

• Differential Drive® Woofer.


Specifications:

• Power Rating: 400 W / 800 W / 1600W

• Frequency Range: (-10dB) 70 Hz - 20 kHz

• Dimensions (H x W x D): 230mm x 420mm x 270mm (9.0in x 16.5in x 10.5in)

• Coverage Pattern: 100 x 15 nominal

• Frequency Response (±3 dB): 85 Hz - 19 Hz

• Crossover Modes: Bi-amp / passive,

• Crossover Frequency: 2.0 kHz

• Net Weight (each): 12.7 kg (28 lb)

• Inputs: Neutrik® Speakon NL-4 (x2)

• Outputs: 1 x XLR

• Enclosure: Duraflex coated plywood

• System Type: Constant Curvature 8" Two-Way Line Array System

• Maximum SPL (1m): 122 dB SPL peak (passive mode) LF: 122 dB (bi-amp mode) HF: 128 dB (bi-amp mode)

• Nominal Impedance: Passive = 8 ohm

• Bi-amp LF = 8 ohm

• Bi-amp HF = 16 ohm

• LF Driver: 1 x 200 mm (8 in) Differential Drive® woofer

• HF Driver: 2 x 25 mm (1.0 in) neodymium compression driver

• Suspension / Mounting: Dual 36 mm pole socket included. Suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts.
