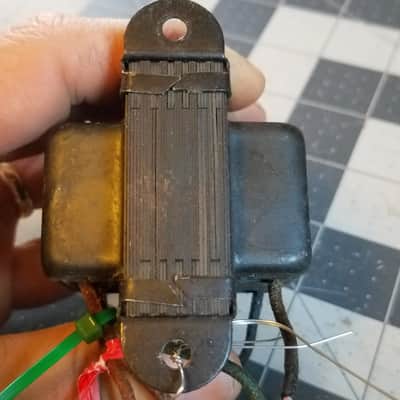

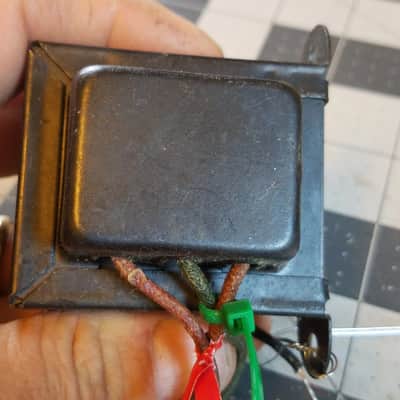

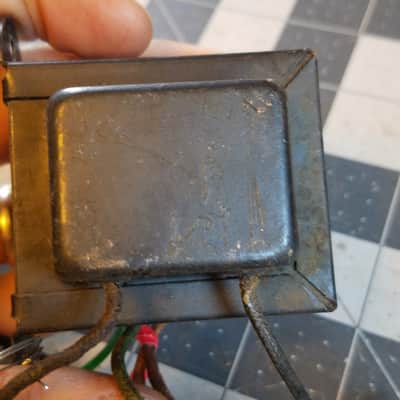

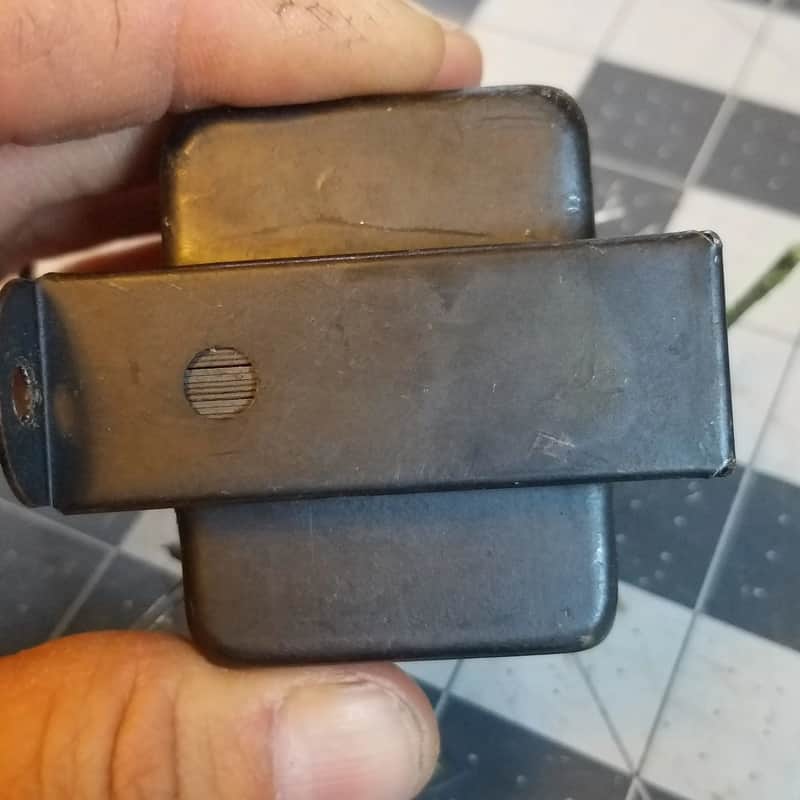

Better Coil PT-1001 Vintage Power Transformer Tested 180 / 6.3 V Tube Amp Project 1960
Our users rate Reverb

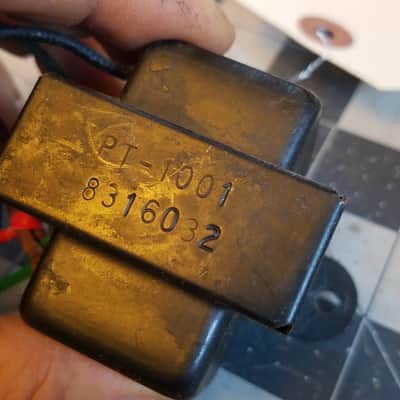

Fully 60 Hz AC tested and guaranteed vintage tube preamp transformer. AC testing using an oscilloscope allows us to find and reject transformers with noisy outputs, which a simple resistance or continuity test will not reveal. Made in USA in 1960 by Better Coil. IEA date code 8316032. Weighs 1 lbs 0 oz. Bolt spacings 60 mm by NA mm. Quantity sometimes available - please enquire.
Here are the verified connections for this transformer:
Input: 117V
Outputs:
180 VAC
6.3 VAC
6.3V is tap off of one HV line

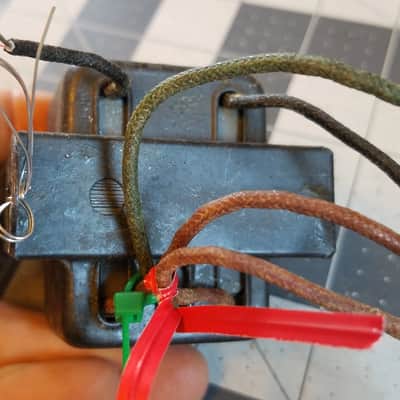

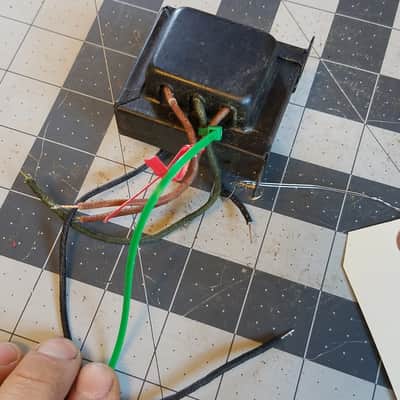

We use a standardized wire identification scheme featuring bright cable ties. In case of any ambiguity, 117V input will be wrapped with a black cable tie, red is high-voltage, yellow is 5V for rectifier, green is 6.3V, blue is 12.6V, white is 117V out for use as an isolation transformer or tubes with series heaters, purple is a second (or third!) 6.3V output. The voltages run a bit higher when run at modern AC levels instead of the 117 VAC that was specified in the 1950s and 1960s. Serial number T-052.
