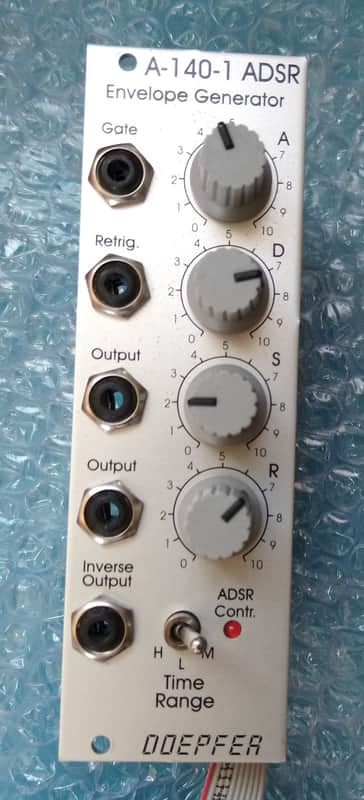

The Doepfer ADSR A-140-1 Envelope Generator module works as intended, includes power cable, please let me know if you have any questions prior to buying.

Module A-140-1 is an envelope generator, and, since it puts out control voltages, counts as one of the modulation devices in a modular system. As soon as the gate input receives sufficient voltage, the ADSR generates a variable voltage, changing in time, called an envelope. This varying voltage is output in normal (positive) and inverted form, and can be used, eg., for voltage controlled modulation of a VCO, VCF, or VCA, or for processing other modules' inputs and outputs.
The shape of the envelope is governed by four parameters: Attack, Decay, Sustain and Release.
The envelope is started (triggered) by a gate signal either from the INT.GATE voltage on the system bus, or, if a signal is put into it, from the gate input socket.
The envelope can also be re-triggered, ie. start from scratch again, each time a trigger signal is sensed at the Retrig. input socket, when the gate is still open.

Module A-140 has available a three-position toggle switch to select one of three time ranges. The time ratios for the three ranges are about 1 : 20 : 1000. The absolute Attack times are about:

  • 20uS ... 100ms (switch position L)
  • 400uS ... 2s (switch position M)
  • 20ms ... 120s (switch position H)

The Decay and Release times are about 3-4 times more. Because of the exponential slope and the gradual asymptotic approach to the zero level the exact specification of the decay and reales times is a bit difficult.

The voltage ranges of the ADSR outputs are about 0 ... +8V for the two normal outputs and 0 ... -8V for the inverted output.


Reverb Buyer Protection

Reverb has your back if your item is lost, damaged, or doesn't match its description. Simply report any issues within 7 days and we'll help you get a full refund.Learn more about Reverb Buyer Protection.

Listed2 years ago
ConditionVery Good (Used)
Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more
Brand
Model
  • A-140 ADSR Envelope Generator
Finish
  • Silver
Categories
Year
  • 2010s
Made In
  • Germany
Horizontal Pitch
  • 8HP
Synth Module Function
  • Envelope
Modular Synth Format
  • Eurorack
