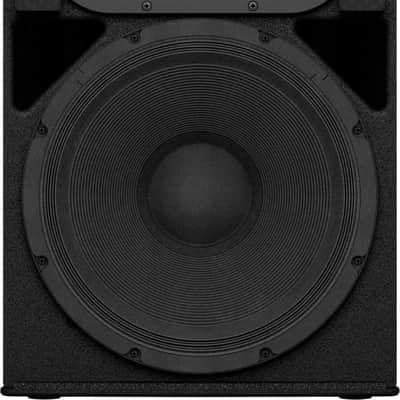

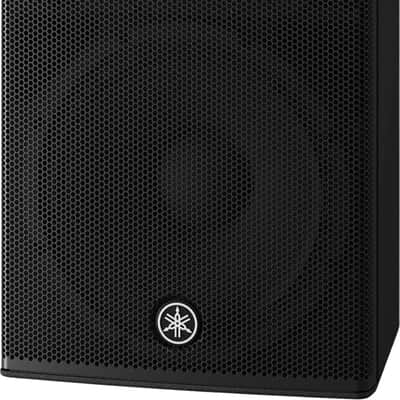

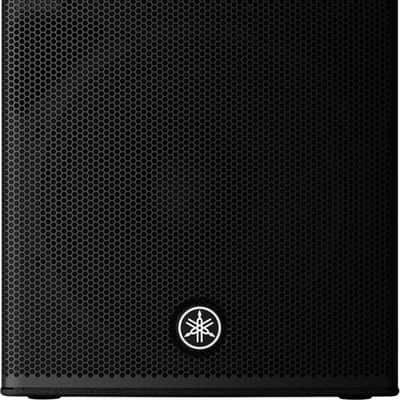

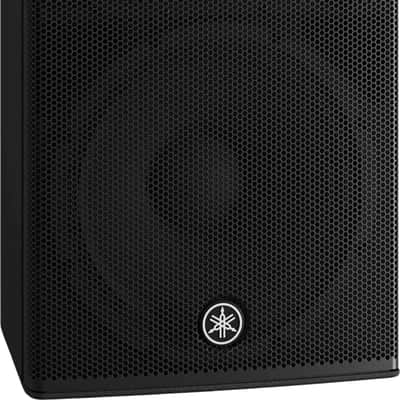

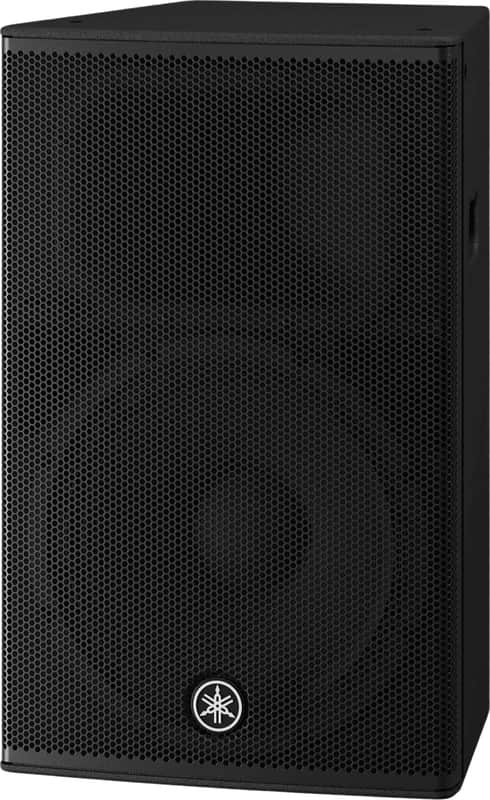

The CHR15 is a 2-way loudspeaker, equipped with a 15-inch woofer and a 1.4-inch HF driver, and perfect for use as a main speaker. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR15 offers best-in-class sound quality and durability. The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class. Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with CHR12 and CHR10 for fixed installation and utilities, CHR15M and CHR12M designed for use as floor monitors, and CHR15 for FOH applications —all featuring carefully selected custom transducers. Combined with practical features adapted for their specific applications, the CHR series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition CHR quality and performance to improve your sound?

Product Features

• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
• Compact size despite the 15-inch LF driver that provides excellent low frequency response
• Dual-angle pole sockets offer both 0° or a -7° down tilt
• Rigging points for use with eye bolts
• Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

Attributes

• Total Power: 500W and Up

Technical Specifications

• Type: Loudspeaker
• # of Channels: 1
• Wattage: 1000W
• Dimensions: 27.2" H x 17" W x 15.9" D
• Weight: 48.5 lbs
• Inputs: 1 x speakON NL4
• Outputs: 1 x speakON NL4 (thru)
• Impedance: 8 ohms
• Maximum Peak SPL: 125 dB SPL
• Frequency Response: 49Hz-20kHz (-10 dB)
• Driver Size: Under 30mm
• Horizontal Coverage Angle: 90 degrees
• Vertical Coverage Angle: 60 degrees
• Powered/Passive: Passive
