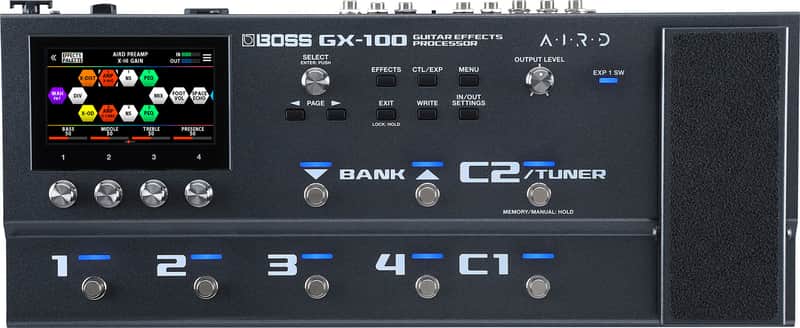

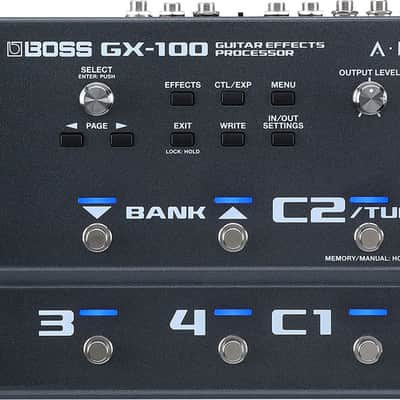

Up for sale is a new Boss GX100 Multi Effects Processor. Authorized dealer. Shipping is free within the continental US. Thank you for looking!
Standard Features
Standard Features
- Powerful, easy-to-use amp/effects processor for guitar and bass
- 24-bit AD/DA, 32-bit floating-point processing, and 48 kHz sampling rate
- Authentic tube amplifier tone and touch response with AIRD technology
- 23 amplifier types and over 150 BOSS effects
- Ultra-flexible amp/effect routing with 15 assignable blocks
- Wide selection of onboard speaker types and support for loading WAV speaker IRs
- Streamlined modern design with intuitive color touch display and rugged metal chassis
- Unlimited effects control with freely assignable onboard footswitches and expression pedal with toe switch
- Connect up to two footswitches or an expression pedal for expanded control
- Send/return loop for external pedals or four-cable method
- Control jack for remote channel switching on your amplifier
- MIDI I/O jacks and multi-channel computer recording via USB
- Edit sounds from your computer with BOSS Tone Studio for macOS and Windows
- Optional Bluetooth® Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or Android mobile device
-
SPECIFICATIONSSampling Frequency48 kHz AD Conversion24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters. DA Conversion24 bits Processing32-bit floating point Effects154 Types Maximum Number of Effects15+3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP)
*depending on the circumstances Memories200 (User) + 100 (Preset) Phrase Loop38 sec. (MONO)
19 sec. (STEREO) Tuner Internal Detection+/-0.1 cent Nominal Input LevelINPUT: -10 dBu
RETURN: -10 dBu Maximum Input LevelINPUT: +18 dBu
RETURN1: +8 dBu Input ImpedanceINPUT: 1 M ohm
RETURN: 1 M ohm Nominal Output LevelOUTPUT (L/MONO, R): -10 dBu
PHONES: -10 dBu
SEND: -10 dBu Output ImpedanceOUTPUT (L/MONO, R): 1 k ohm
PHONES: 44 ohms
SEND: 1 k ohm Recommended Load ImpedanceOUTPUT (L/MONO, R): 10 k ohms or greater
PHONES: 44 ohms or greater
SEND: 10 k ohms or greater ControlsBANK DOWN switch, BANK UP switch, CTL1 switch, CTL2/TUNER switch, 1--4 switches, POWER switch, EXP1 switch, GND LIFT switch
EFFECTS button, CTL/EXP button, MENU button, EXIT button, WRITE button, IN/OUT SETTINGS button, PAGE button,1--4 knobs

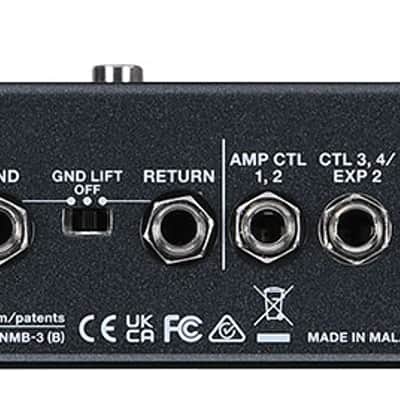

SELECT knob, OUTPUT LEVEL knob, EXP1 pedal DisplayColor Graphic LCD (480 x 272 dots) Touch screen ConnectorsINPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
CTL3, 4/EXP2 jack, AMP CTL1, 2 jack: 1/4-inch TRS phone type
MIDI (IN, OUT) connectors
USB COMPUTER port: USB B type
Bluetooth ADAPTOR connector: Dedicated connector
DC IN jack Power SupplyAC adaptor Current Draw1.2 A AccessoriesAC adaptor (PSB-1U + AC Cord Set)
Owner's manual
Leaflet "USING THE UNIT SAFELY"
