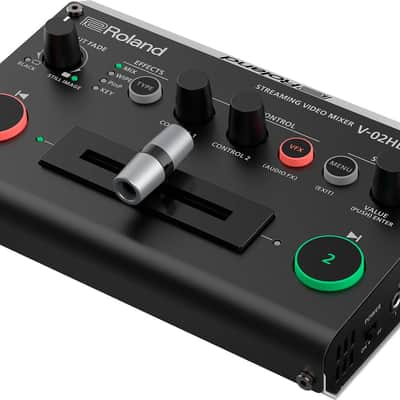

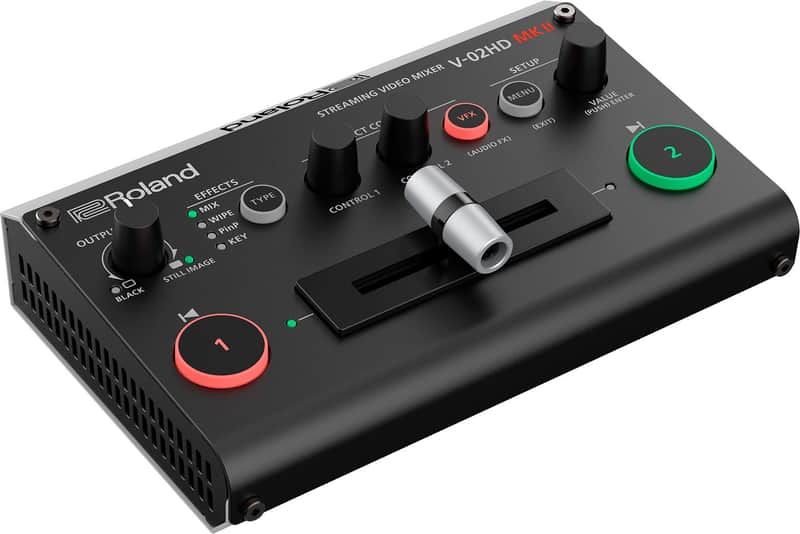

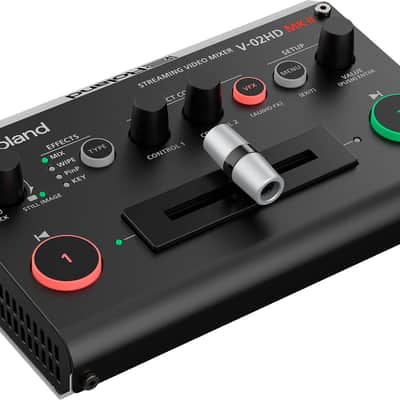

Roland Professional A/V V-02HD-MKII Multi-Format Live Streaming Video Mixer

Upgrade your livestreams with a Roland V-02HD MK II Streaming Video Mixer. This compact, easy-to-use video mixer is at an affordable price point. Connect and switch two high-definition HDMI cameras and send them directly to your streaming platform over USB-C. Mix in audio sources via dedicated inputs and HDMI, apply video effects and transitions. With the V-02HD MK II, you will have plenty of flexibility for all your streaming needs.

Roland Professional A/V V-02HD-MKII Applications:

Education

Houses of Worship

Live Music

Corporate Meetings

Government

Roland Professional A/V V-02HD-MKII Includes:

• Startup Guide
• AC adapter
• Power cord
• Cord hook

Roland Professional A/V V-02HD-MKII Features:

• (2) HDMI Inputs, (1) HDMI Output
• Discrete Scalers on Inputs and Output
• 14 Real-Time Adjustable Effects
• 5 Compositing Effects
• Picture-in-Picture Effect
• Stores Single Still Image/Graphic

Roland Professional A/V V-02HD-MKII Specifications:

• Video:
• Video Processing: 4:4:4 (Y/Pb/Pr), 10-bit
• Input Connectors:
• • INPUT 1--2: HDMI type A x 2
  • HDCP Supported
  • Multi-format Supported
• Output Connectors:
• • PROGRAM OUT: HDMI type A
  • PREVIEW OUT: HDMI type A
  • HDCP Supported
  • Multi-format Supported
  • USB STREAM: USB Type-C (TM)
• Input Formats:
• • 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
  • 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
  • 1080/23.98p, 1080/24p
  • VGA (640 x 480/60Hz), SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz)
  • WXGA (1280 x 800/60Hz), SXGA (1280 x 1024/60Hz)
  • FWXGA (1366 x 768/60Hz), SXGA+ (1400 x 1050/60Hz)
  • UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)
  • • * The refresh rate is the maximum value of each resolution.
    • * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
    • * 1920 x 1200/60 Hz: Reduced blanking
    • * The input interlaced video signal is converted to progressive video signal by
  • internal processing.
  • • 1 FRAME RATE = 59.94 Hz
    • 2 FRAME RATE = 50 Hz
  • Output Formats:
  • • PROGRAM OUT, PREVIEW OUT:
    • • 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/29.97p *1
      • 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
      • SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
      • WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
      • SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
      • UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
      • HD (1280 x 720/60 Hz), FHD (1920 x 1080/60 Hz)
      • * Conforms to VESA DMT Version 1.0 Revision 11.
      • * The output refresh rates of 800 x 600--1400 x 1050 are 75 Hz when the unit's frame rate setting is 50 Hz.
      • * 1920 x 1200/60 Hz: Reduced blanking
      • *1 FRAME RATE = 59.94 Hz
      • *2 FRAME RATE = 50 Hz
    • USB STREAM:
    • • 1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
      • 1080/29.97p, 720/29.97p, 640 x 480/29.97p *2
      • 1080/50p, 720/50p, 640 x 480/50p *3
      • 1080/25p, 720/25p､640 x 480/25p *4
      • *Uncompressed format (YUV2) and Compressed format (Motion JPEG) supported.
      • *1 FRAME RATE(USB OUT) = 59.94 Hz
      • *2 FRAME RATE(USB OUT) = 29.97 Hz
      • *3 FRAME RATE(USB OUT) = 50 Hz
      • *4 FRAME RATE(USB OUT) = 25 Hz
    • Video Effects:
    • • Transition: CUT, MIX (DISSOLVE), WIPE (9 types)
      • Composition: PinP (RECTANGLE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)
      • Visual Effects (14 types): MOSAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FIND EDGES, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET
      • Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
    • Audio:
    • Audio Processing:
    • Audio formats:
    • Input Connectors:
    • Output Connectors
    • • Analog:
      • PHONES: Stereo miniature type
      • Digital:
      • • USB STREAM: USB Type-C (TM)
        • PROGRAM OUT: HDMI type A
        • PREVIEW OUT: HDMI type A
      • Input Level: AUDIO IN: -10 dBu (Maximum: +10 dBu)
      • Input Impedance: AUDIO IN: 10 k ohms
      • Output Level: PHONES: 92 mW + 92 mW (32 ohms)
      • Output Impedance: PHONES: 10 ohms
      • Audio Effects: Delay, Reverb, High pass filter, Noise gate, De-esser, Compressor,
      • Equalizer, Voice changer: Multi-band compressor, Limiter, Test tone output
      • Others:
      • Other Connectors:
      • • USB STREAM: USB Type-C (TM) (for backup from PC, for remote control from PC and iPad)
        • CTL/EXP:1/4-inch TRS phone type (for remote control from footswitch and expression pedal)
      • Other Functions:
      • • Preset Memory (8 types)
        • Panel lock function
        • EDID Emulator
        • Auto-Switching
        • Auto Input Detect
      • Power Supply: AC Adaptor
      • Current Draw: 1.4 A
      • Power Consumption: 12.6 W
      • Operation Temperature:
      • • +0 to +40 degrees Celsius
        • +32 to +104 degrees Fahrenheit
      • Dimensions: 6-5/16 (W) x 4-1/4 (D) x 2-1/16 (H) inches
      • Weight (excluding AC adaptor): 1 lbs 6 oz
