JLD Bridge Doctor Wide

JLD Bridge Doctor Wide Version

• Enhances volume
• Flattens 'bellied' soundboards
• Fits Takamine J.J. and Legacy 12 String

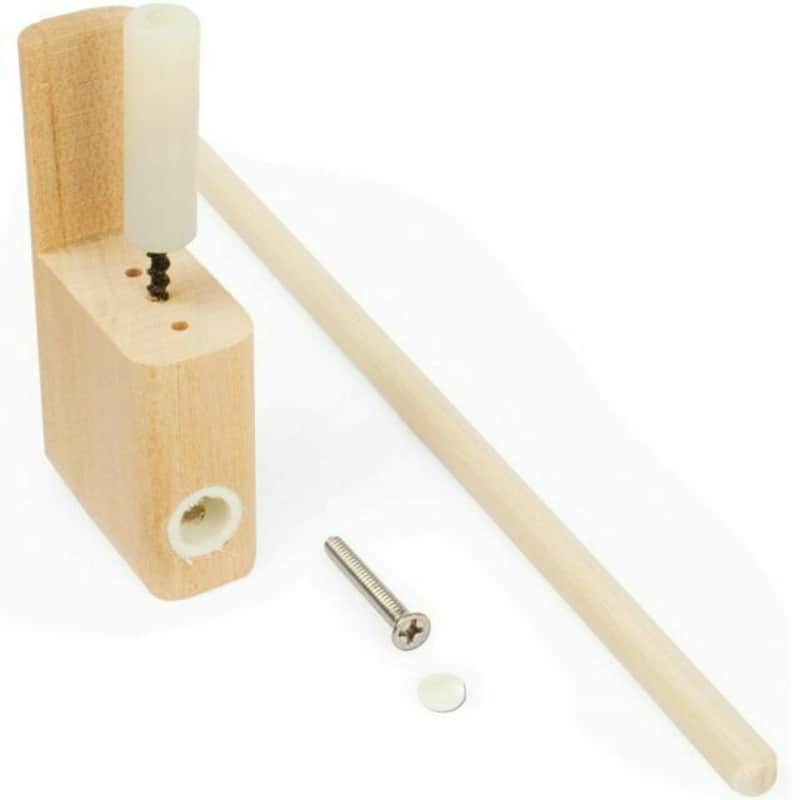

A unique solution to a common bridge problem, this spruce device attaches beneath a guitar bridge. An adjustable spruce "pressure post" rests against the tail block, providing leverage to flatten the soundboard.

The spruce block is 3/4" x 2" x 3-3/8" tall. The 1/4"-diameter tension rod is 9" long. The mounting post has three different positions to accommodate a variety of bridge styles.

Screw mount: This spruce device attaches beneath the bridge via an inlaid screw (a white pearloid dot is included to hide the bridge screw). An adjustable spruce pressure post rests against the tail block, providing leverage to flatten the soundboard. Better bridge contact and alignment can also enhance sound projection.

Brass pin mount: The pin-mounted version of the JLD Bridge Doctor attaches beneath the bridge using a threaded brass bridge pin. The strings mount horizontally through the tops of the matching brass bridge pins (included).
