Dusk has arrived........At Dr. Scientist we strive to make innovative, versatile, and unique pedal effects that will take your tone on an adventure!
Authorized Dr Scientist Retailer.

Visit shanestarguitarsandgear.com for more product selection, new gear info, and factory warranties. Plus, state tax laws do not require our business to charge sales tax. Thank you!!

Factory Warranty.
Quick replies to any questions and quick shipping, usually same day!
FROM DR. SCIENTIST:
Dusk is a digitally controlled analog filter. At its heart is an analog 12dB/Octave low pass filter based around an old-school integrated circuit called an Operational Transconductance Amplifier or OTA. The OTA runs off of split +/-9V rails for great audio quality and a deep filter sound. The digital side brings a whole bunch of convenient and powerful features like controlling the filter setting, tap tempo, MIDI, 6 LFOs, and a platform for all the best filter modes in one small pedal.
3 Filter Modes, 6 LFO Waveforms in a small form factor
High quality analog signal path
Premium parts and components throughout
True Bypass with soft touch relay switching
MIDI implementation of all digital controls
Expression pedal/CV control over Filter Cutoff
Top mounted audio and power jacks
Designed and handmade in B.C., Canada

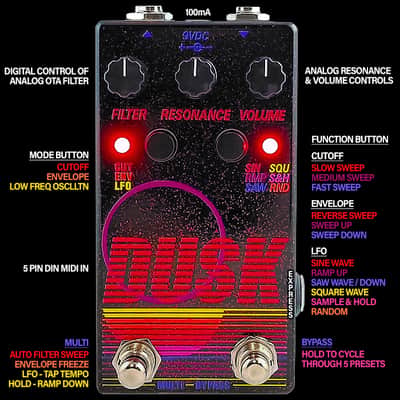

FILTER – Mode dependent. Controls Filter Cutoff or Filter Range.
RESONANCE – Analog feedback control adds resonance to filter.
VOLUME – Analog volume control.
MODE – Select 1 of 3 operating modes (Cutoff, Envelope, LFO).
WAVEFORM – Select 1 of 6 waveforms for LFO Mode.
MULTI – Mode dependent. Automated Filter Sweep, Envelope Freeze, LFO Speed Ramping.
BYPASS – Engage or disengage the effect
Input/Output Impedance: 500kΩ/1kΩ
150mA @ 9VDC, 2.1mm centre negative plug
True Bypass with soft touch relay switching
Additional Specs
Mono input, Mono output, TRS Expression input/TS Control Voltage input
Filter Control: +/-24dB analog, resonant low pass filter
Exp Input: TRS cable, any resistance
All analog signal path
Dimensions: 70mm wide, 129mm long, 59mm tall (2.75” wide, 5.1” long, 2.3” tall
