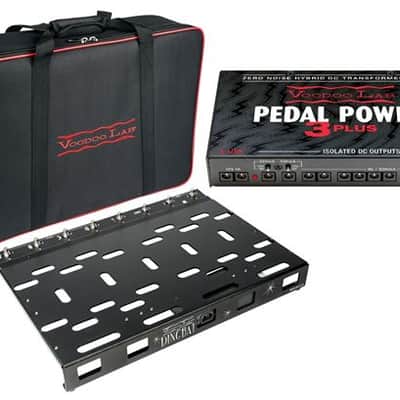

The Dingbat PX Power Package includes onboard true bypass pedal switching and a factory-installed Pedal Power 3 PLUS. Its innovative patented design places the switcher beneath the foot of the board keeping all cabling neatly out of view and preserving maximum space for pedals. Dingbat PX also features a dedicated position for a second Pedal Power that can be quickly installed with optional mounting brackets if more power is needed. Hook-and-loop tape is provided to attach pedals, as well as zip ties and 4-way tie mounts to secure cabling underneath.

Voodoo Lab Dingbat PX Pedalboard with Pedal Power 3 Plus Features

• Innovative patented design
• Crafted from lightweight 6061-T6 aircraft-grade aluminum
• Integrated Voodoo Lab PX-8 PLUS True Bypass Programmable Pedal Switcher
• Single-button access to 36 preset effect combinations and 128 presets via MIDI
• Factory-installed Pedal Power 3 PLUS featuring 12 500mA isolated DC outputs
• Onboard power operates at 100-240VAC for international touring
• Additional slot under pedalboard for mounting second Pedal Power unit
• Adhesive-backed hook-and-loop pedal mounting tape
• UV-resistant cable ties and 4-way tie mounts
• Professional tour grade padded gig bag with premium YKK zipper hardware
• Made in the U.S.A.

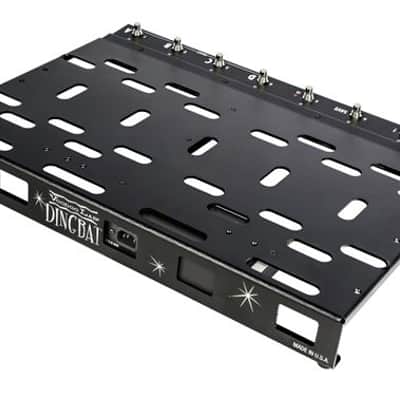

Designed for seamless integration with industry-standard Voodoo Lab Pedal Power, the innovative patented Dingbat pedalboard delivers a rugged, lightweight platform for organizing pedals and keeping cables neatly tucked away and out of view. Each Dingbat is crafted in the USA from superior American 6061-T6 aircraft-grade aluminum and includes a heavy-duty tour-ready gig bag.

Integrated True Bypass Pedal Switching:
Dingbat PX features an onboard PX-8 PLUS pedal switcher equipped with 8 true-bypass audio loops and 8 premium quality silent-operation footswitches. Simple and intuitive programming allows instant access to 36 user-created preset loop combinations at the touch of a single button. PX-8 PLUS can also function as a simple strip to turn on and off individual loops. In addition to the 8 audio loops, PX-8 PLUS includes a loop insert point between loops 6 and 7. This insert point is ideal for placing a volume pedal or other audio device into the signal path.

Power Supply:
Pedal Power 3 PLUS is the first lightweight, high current, universal input voltage power supply to deliver zero-noise performance. Featuring 12 high current isolated outputs (10 x 9V, 2 x switchable 9V/12V), it is ideal for delivering audiophile-quality power for everything from standard battery-operated pedals to modern high current DSP effects. Pedal Power 3 PLUS is also expandable via on-board X-LINK ports and operates at any input voltage making it an ideal choice for international touring. All necessary power cables are included.

Gig Bag:

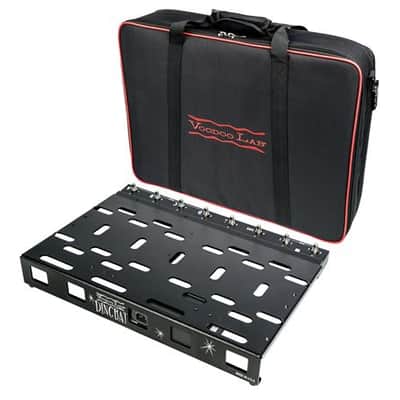

Each Dingbat Large pedalboard includes a heavy-duty tour grade padded gig bag featuring shoulder and backpack straps for easy transportation and premium materials, like YKK zipper hardware, to ensure long-lasting protection for your board and pedals.

CALIFORNIA PROPOSITION 65 WARNING
 WARNING: Cancer and Reproductive Harm -

Voodoo Lab Dingbat PX Pedalboard with Pedal Power 3 Plus Specifications

• Gig Bag Dimensions and Weight: 25” x 18.5” x 7” (635” x 470 x 178mm)/ 3.6 lbs. (1.63 kg)
• Pedalboard Surface Size: 22” x 13” (559mm x 337mm)
• Pedalboard Size with Switcher: 22” x 16” (559mm x 406mm)
• Pedalboard Weight with Switcher and power Supply: 7.5 lbs. (3.4 kg)
