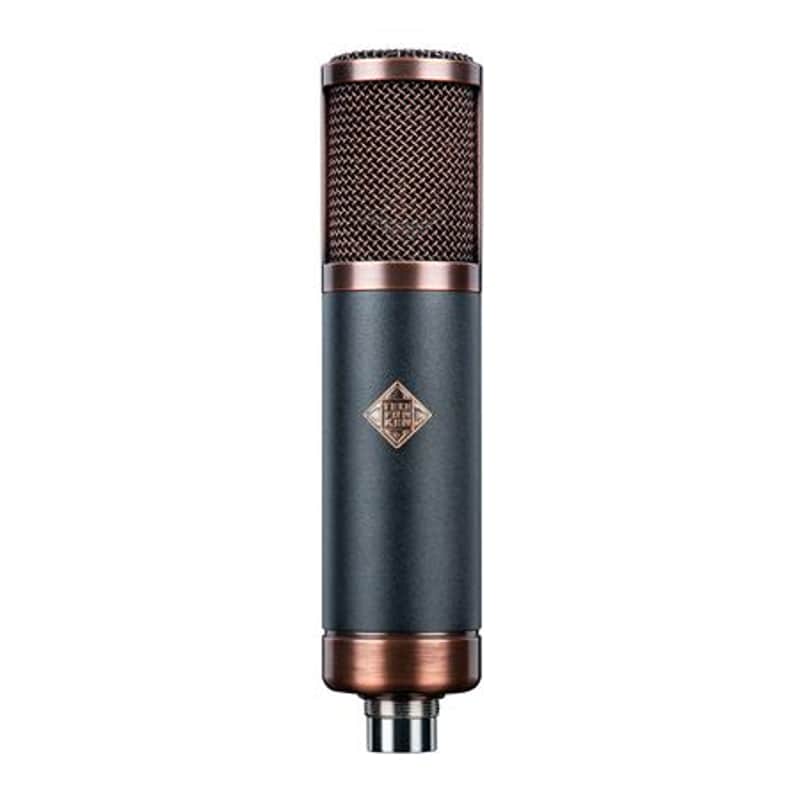

A very dynamic and versatile multi-pattern mic with that legendary ‘Copperhead’ sound! The TF39 Copperhead Deluxe from Telefunken adds a dual membrane K67-style capsule, allowing for 3-pattern selection between cardioid, omnidirectional, and figure-8. This added feature set gives the TF39 greater flexibility and options in the studio.

Telefunken TF39 Copperhead Deluxe Large Diaphragm Mic Specifications

• Type: Pressure Gradient Condenser
• Capsule: TK67 - 25.4 mm Dual Membrane, Center-Terminated Diaphragm
• Tube Type: 5654W (NOS)
• Transformer: Lundahl LL1935
• Polar Pattern: Cardioid, Omnidirectional, and Figure-8
• Frequency Range: 20 Hz - 20 kHz, ± 3 dB
• Sensitivity: 16.8 mV/Pa, ± 1 dB
• THD at 1 kHz at 1 Pa (Amplifier) < 0.35%
• Output Impedance: < 300 O
• Maximum SPL (for 1% THD): 130 dB
• S/N Ratio: 86.8 dBA
• Self Noise (Amplifier): 7.2 dBA
• Dimensions / Size: 200 mm L x 46 mm Dia.
• Weight: 630 g
• Current Draw from Mains: 50 mA

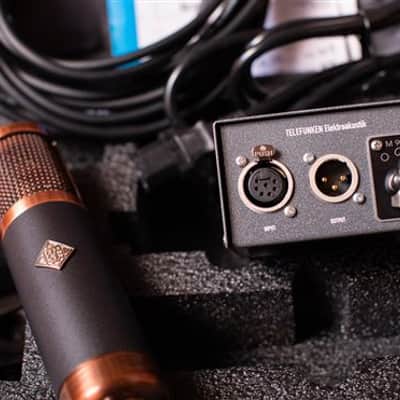

• Power Supply: M 903 PSU - 7-Pin Female XLR Input, 3-Pin Male XLR Output, Polar Pattern Selector
• Cable: M 803 - 7-Meter (23') Tube Mic Cable with 7-Pin XLR Connectors
• Mount: M 703 - Shock Mount, M 782 - Stand Mount
• Flight Case: ZC03 - Light-Weight Zipper Carrying Case
