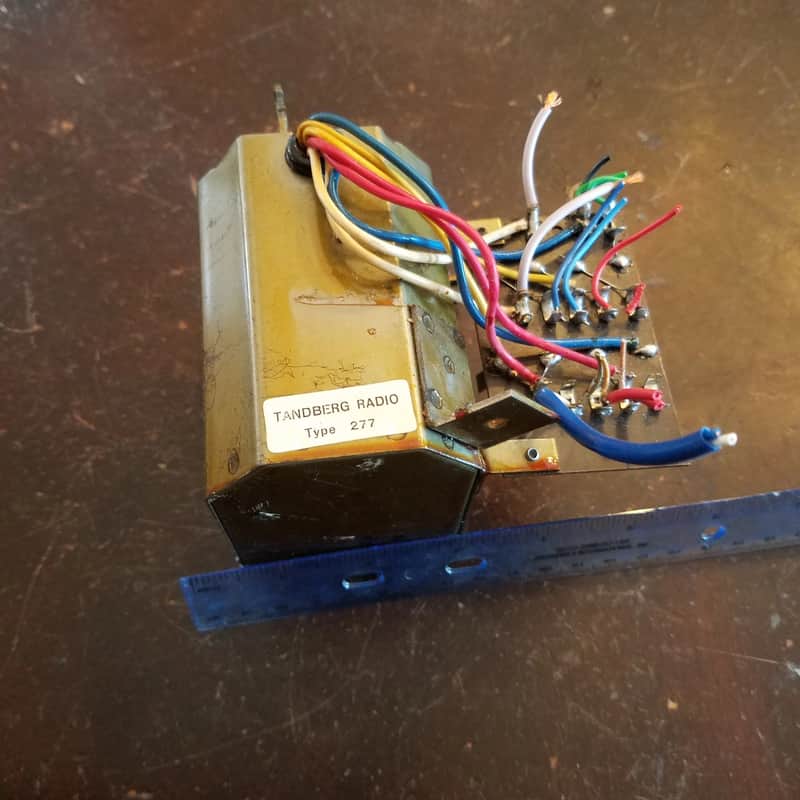

Tandberg 245 / 25 / 6.3 V Tube Power Transformer 64 62 277 12AX7 12AU7 Preamp Project 1965
Our users rate Reverb

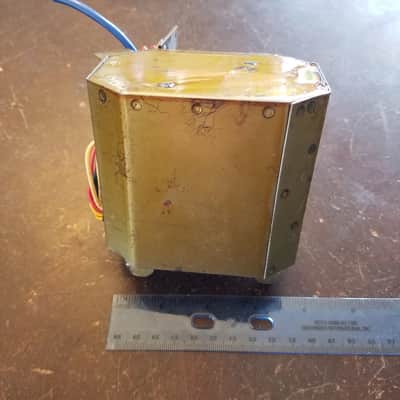

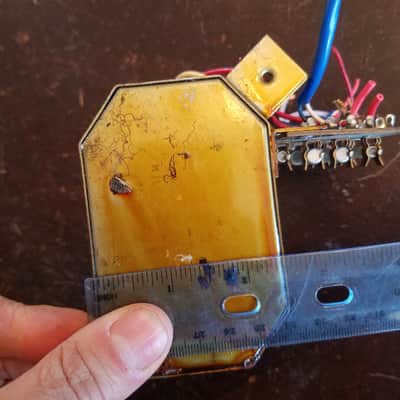

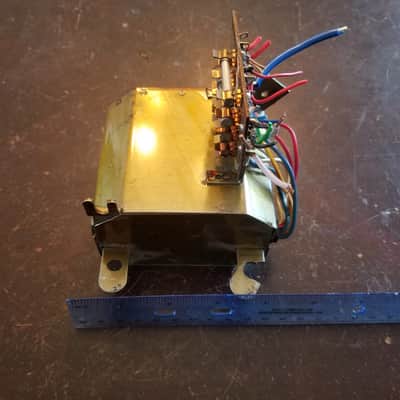

Fully 60 Hz AC tested and guaranteed vintage tube preamp transformer. AC testing using an oscilloscope allows us to find and reject transformers with noisy outputs, which a simple resistance or continuity test will not reveal. Made in Norway sometime between 1958 and 1965. Weighs 3 lbs 15 oz. 77mm bolt spacing. Available in tan shellac or in sleek black.

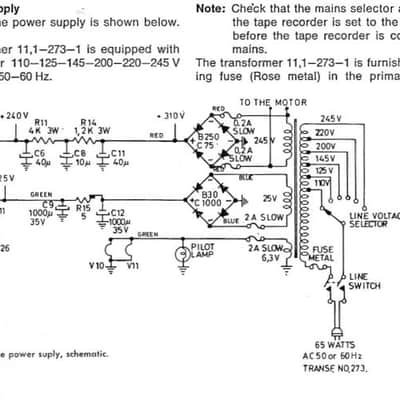

This powered a motor and a bunch of tubes. The 25VAC output was rectified to DC (via solid state bridge rectifier) and provided the heater for eight tubes (4 12AX7, 2 12AU7, and 2 12AT7) by putting the heater for pairs of tubes in series at 25V. DC heating was used on signal tubes to reduce hum. The indicator tubes and one other 12AU7 used a direct 6.3VAC tap from the transformer.

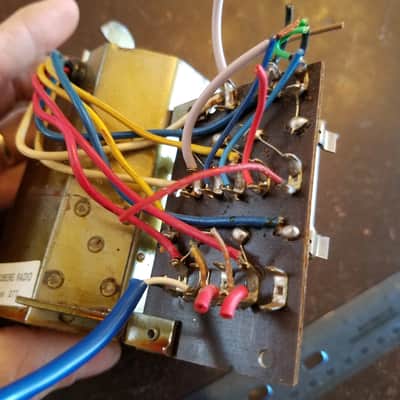

115 VAC in (white from core)
outputs:

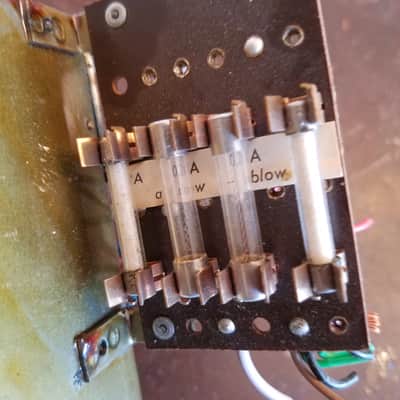

245 VAC fused at 0.2A (red from core)
25 VAC fused at 2A (yellow from core)
6.3 VAC fused at 2A (blue from core)
The voltages run a bit higher when run at modern AC levels instead of the 115 VAC that was specified in 1965.
