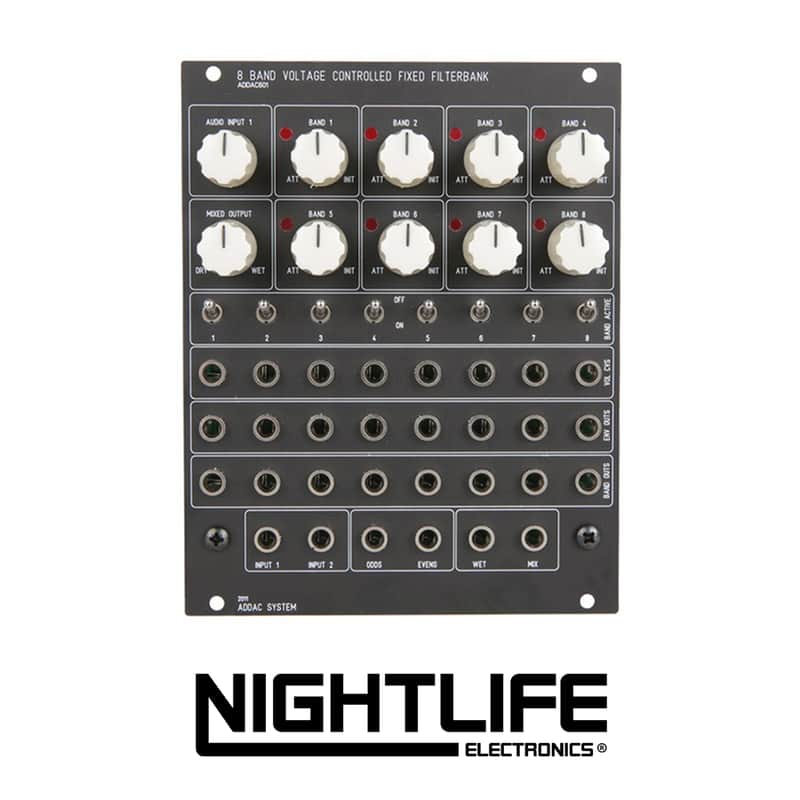

ADDAC System ADDAC601 VC Fixed Filterbank Black

Our ADDAC601 Analog Filterbank will have you shaping the spectrum of your sound "tout de suite".

With its 8 fixed frequencies, this very special filterbank has two additional features that you won't find anywhere else. Each of the 8 band volumes can be controlled through a linear high performance VCA, which adds great dynamics and new abilities to the art of filtering. Additionally this module also doubles as an envelope follower, with a dedicated CV output per band.

• Width: 10HP
• Depth: 40mm
• Power: 100mA @+12V / 40mA @-12V

Features

• 2 audio inputs (audio 1 includes attenuator knob)
• Wet/Dry mix knob
• 8 Independent Bands, each featuring:
• Linear high performance VCA with attenuator/initial knob
• On/Off Switch (defines if band is routed to the Master Outputs)
• Post VCA Envelope Follower CV Output
• Post VCA Audio Output
•  Monitor LED
• Band distribution:
  50 Hz / 110Hz / 220Hz / 500Hz / 1.1kHz / 2.2kHz / 5.2kHz / 11 kHz
