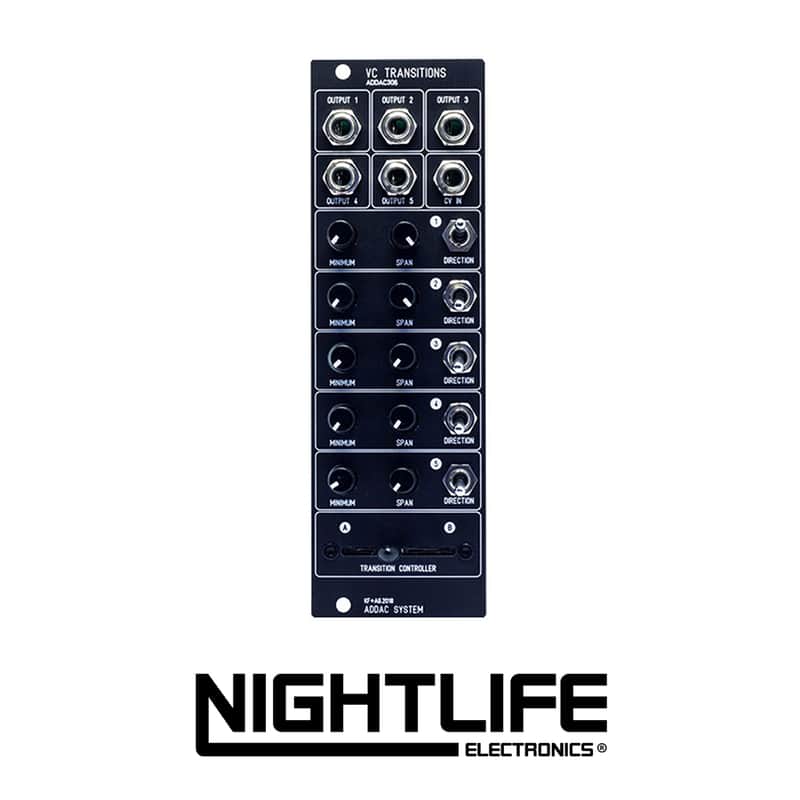

ADDAC306 is a 5 channel multi-directional CV generator.

You can think of it as a "sweet spot" controller, or a hands-on way of transiting from one state to another.

Each of the five channels has MINIMUM, SPAN and DIRECTION controls, a common CV IN and a common TRANSITION CONTROLLER slider.

• Width: 8HP
• Depth: 40mm
• Power: 40mA @+12v / 20mA @-12v

Features

• MINIMUM sets the minimum channel voltage.
• SPAN sets the voltage range of the channel.
• DIRECTION sets whether the voltage transition for each channel goes from MINIMUM to maximum, or maximum to MINIMUM.
• The TRANSITION CONTROLLER slider controls the transition from the minimum value (A) to the maximum value (B) or vice versa, according to the settings of each independent channel.
• Using the CV IN you can use two ADDAC306 modules to expand your control options to 9 voltage outputs under one common slider control.
