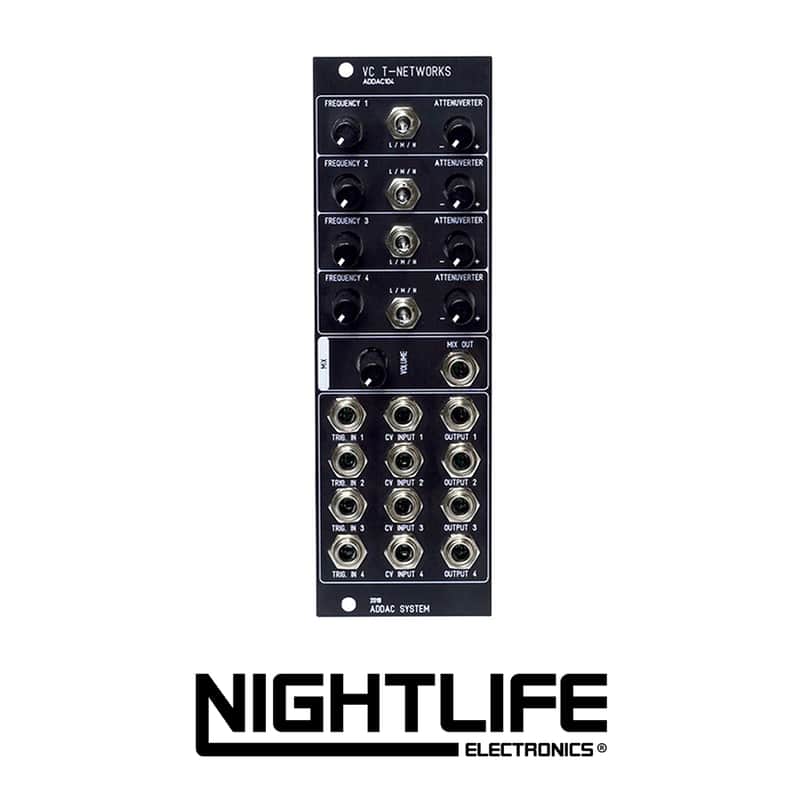

ADDAC System ADDAC104 VC T-Networks Black

Following our ADDAC103 T-Networks this new module is also inspired by Twin T-Networks circuits used in many lengendary drum machines. A simple 4 voice module with frequency controls for each of the voices. This new module also features CV inputs with attenuverters for each voice Frequency. Due to the specificities of the circuit and to keep the module at a low price these inputs are not callibrated to 1v/octave.

At each voice input there’s a gate to trigger converter so any input source is possible.
Audio inputs can also be used as an input, in this case and due to the nature of the gate to trigger converter, each voice can be used as very destructive filters.

The top 2 channels feature a higher frequency range, the bottom 2 channels feature a lower frequency range.

• Width: 8HP
• Depth: 25 mm
• Power: 50mA @+12v / 50mA@-12v

Features

• Frequency control
• Frequency Range Switch, Low/Mod/High
• Trigger Input
• Audio Output
