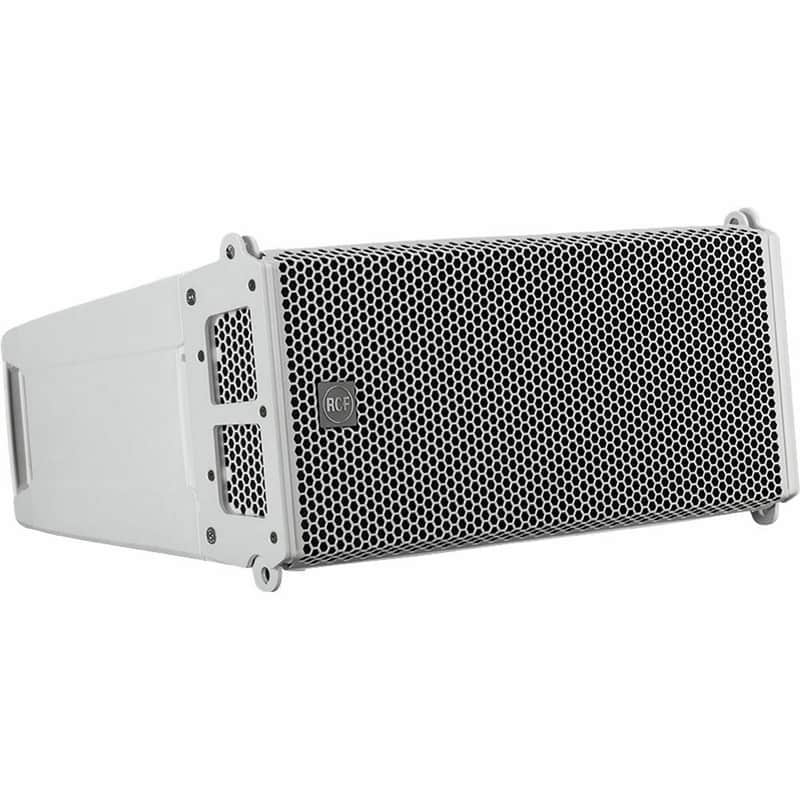

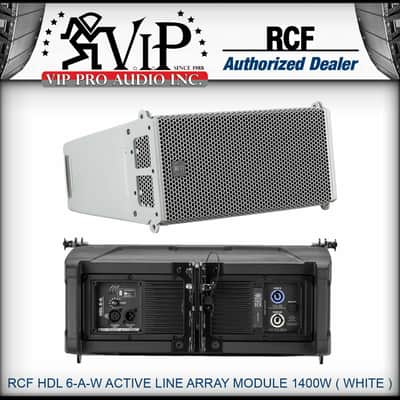

RCF HDL 6-A-W ACTIVE LINE ARRAY MODULE 1400 Watts ( WHITE )

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must.

• A 1400 W 2-channel class-D amplifier powers the system.

• A powerful DSP processes the sound including crossover, phase correction, limiting and protection.

• The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.

• 1400 W, two-way amplification
• 131 dB max SPL
• 1.7" voice coil neodymium compression driver
• 2 x high power neodymium 6.0"woofers
• 48 kHz, 32 bit floating point DSP processing
• Symmetrical design
• Extremely low weight
• FiRPHASE processing

Acoustical Specifications

• Frequency Response -3 dB: 65 Hz ÷ 20000 Hz
• Max SPL: 131 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 10°
• Compression Driver: 1.0" neo, 1.7" v.c.
• Woofer: 2 x 6" neo, 2.0" v.c.

Input/Output Section

• Input connectors: XLR male
• Output connectors: XLR female
• Input sensitivity: +4 dBu
