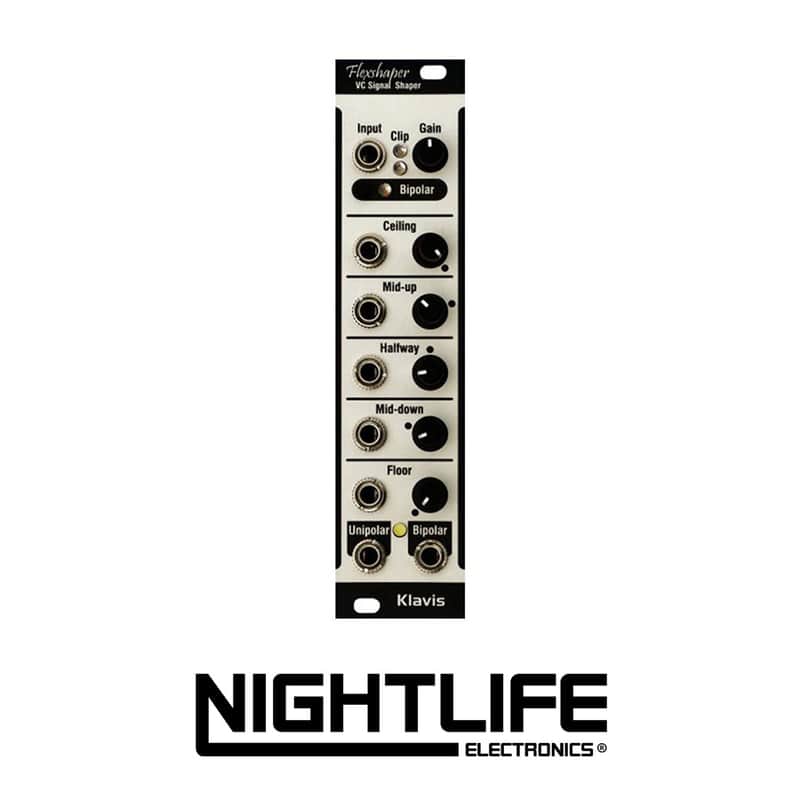

Klavis Flexshaper Silver

The Flexshaper is a highly versatile module when it comes to modify evolving voltages in other directions and levels. Five settings allow you to fold/expand/clip/compress/invert partially or completely any CV or audio signal.
The module can act as an envelope-shaping tool, frequency multiplier, waveshaper, clipper, distortion, limiter, curve changer, and more. Five CV inputs offer limitless control over the placement of the voltage points for dynamic signal sculpting.

The idea of the Flexshaper comes from a feature in the Oberheim® Matrix synthesizers called Tracking Generator. This signal processor was part of the modulation matrix and meant to be virtually inserted between modulation sources and destinations in order to change the shape of the controlling signal. The Flexshaper applies the same concept using the same 5 shaping points. However, it goes beyond Oberheim’s implementation on two main aspects:

• It goes fast enough to process signals at full audio rate
• The 5 points are dynamically adjustable (CV) in real-time

Besides, the Flexshaper can process adequately bipolar and unipolar Eurorack signals, even chnging them one another.

• Width: 6HP
• Depth: 21mm
• Power: 5mA @ +12V / 7mA @ -12V / 32mA @+5V
