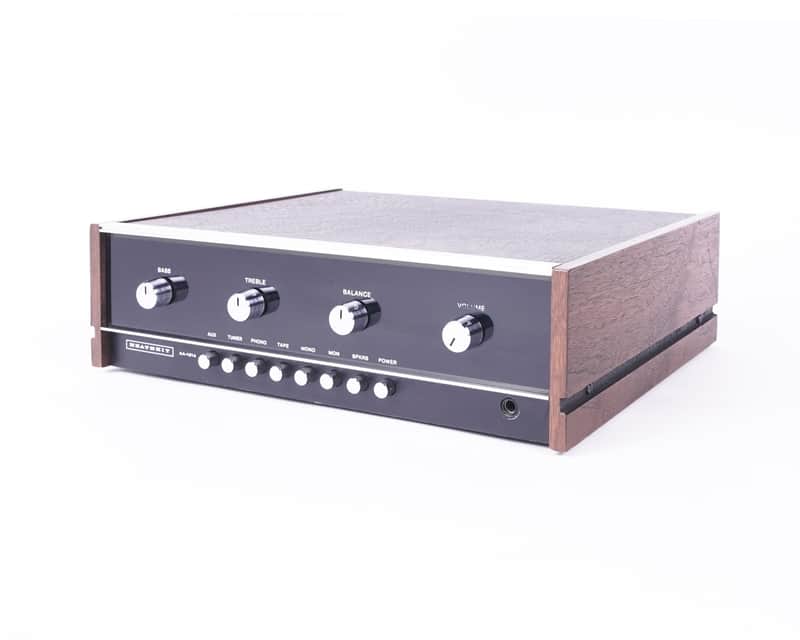

Heathkit AA-1214 // Integrated Amplifier
This listing has ended
See similar gear from other Reverb sellers
Our users rate Reverb
Plug and Play, circa 1973.
In its simplicity and functionality, we detect notes of Bauhaus and Braun, and its clean lines place it at home in nearly any setting. Create the perfect minimalist system with this integrated amplifier, a pair of efficient speakers, and a turntable, or a Sonos Connect. Voilà !
- Full 30 point service check
- Cleaned controls, switches, and chassis
Power Output (16/8/4Ω) 10/15/20W
Output Power (Dynamic Music, IHF, 16/8/4Ω) 14/25/30W
Power Response (IHF, 0.5% THD) 5Hz-30kHz
Frequency Response 7Hz-100kHz ±1dB, 5Hz-150kHz ±3dB (1W)
THD (20Hz-20kHz) 0.5%
THD (1kHz) 0.25%
IMD (60Hz:6kHz, 4:1, 1W) 0.2%
IMD (60Hz:6kHz, 4:1, 50W) 0.5%
Damping Factor 50
Input Sensitivity (Phono) 2mV
Input Overload (Phono) 75mV
Input Sensitivity (Aux) 190mV
Input Overload (Aux) 2.5V
Output Voltage (Tape) 0.4V
SNR (Phono) 65dB
Channel Separation (Phono) 55dB
Channel Separation (Aux) 55dB
Power Source 120/240VAC, 50/60Hz 100W
Dimensions 3.8″ × 17″ × 13″
Weight 13 lbs.
STOCK NO.7543486513373
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Listed | 4 years ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
