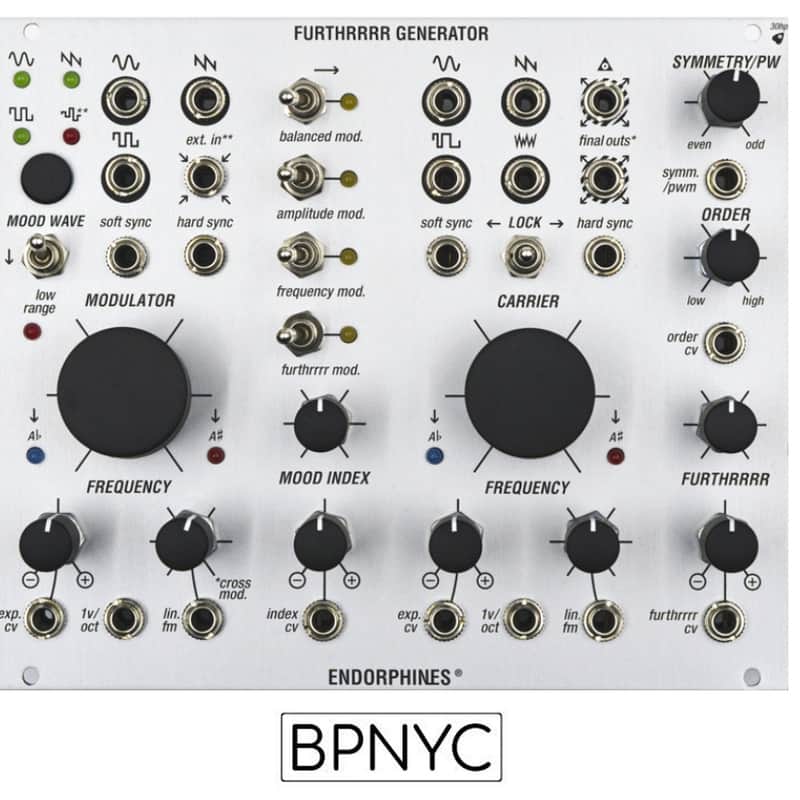

DUAL COMPLEX VCO WITH WAVESHAPER

• all analog signal path inspired by & based upon famous westcoast synthesis – a module in the tradition of harmonic generation based on additive synthesis
• 2 discrete OTA triangle-core VCOs both with hard- (resetable) and soft- (inverting) syncs. The cores are self made custom encapsulated circuits with decent results of tracking (up to 6 octaves) as well as fine temperature stability
• multi-turn frequency knobs sweep up to 10 octaves
• simple and efficient oscillator tuners
• Selectable tracking (1 or 1.2 v/oct) by setting a jumper (we believe at last a few wigglers will appreciate that)
• instant thru-zero linear FM with the Strong zero VCO core update
• deep, metallic timbres, entirely new sphere of sounds from light whistles to weird noises
• together with Grand Terminal creates powerful 2-operator modular FM-synth

Power consumption:

• 180 mA +12V
• 215 mA -12V
• 0 mA 5VDimensions:
• 30 HP
• 26 mm deep
