Plum Audio RO'VED - 1U Macro Oscillator 2022 Silver

1U Macro Oscillator

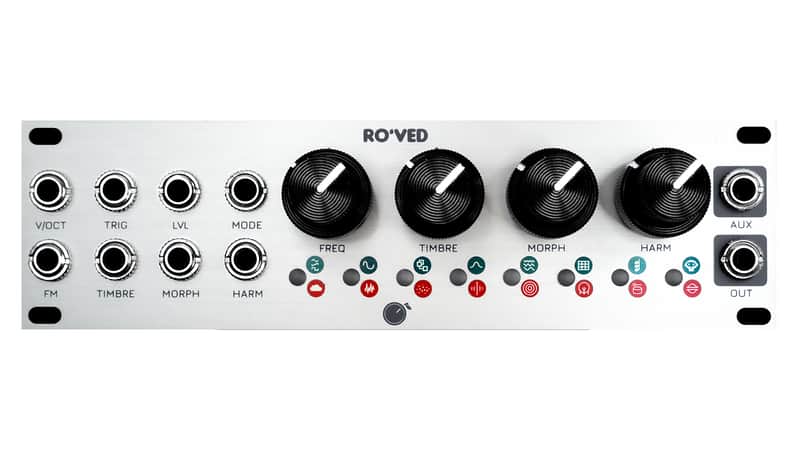

RO'VED is Plum's new 1U MACRO OSCILLATOR based on the legendary "Plaits" by Mutable Instruments.
An Innovative Interface With 4 "CLICKKNOBS" - Plum's 3-in-1 Knobs:
RO'VED features an improved interface that delivers the best of the 1U format.
Along with custom firmware that makes the use of this interface natural and convenient.
Specifications:

8 synthesis models for pitched sounds (Green Models):

• Two detuned virtual analog oscillators with continuously variable waveforms.
• Variable slope triangle oscillator processed by a waveshaper and wavefolder.
• 2-operator FM with continuously variable feedback path.
• Two independently controllable formants modulated by a variable shape window (VOSIM, Pulsar, Grainlet, Casio CZ-style resonant filter...).
• 24-harmonic additive oscillator.
• Wavetable oscillator with four banks of 8x8 waves, with or without interpolation.
• Chord generator, with divide down string/organ emulation or wavetables.
• A collection of speech synthesis algorithms (formant filter, SAM, LPC), with phoneme control and formant shifting. Several banks of phonemes or segments of words are available.
8 synthesis models for noise and percussions (Red Models):

• Granular sawtooth or sine oscillator, with variable grain density, duration and frequency randomization.
• Clocked noise processed by a variable shape resonant filter.
• 8 layers of dust/particle noise processed by resonators or all-pass filters.
• Extended Karplus-Strong (aka Rings' red mode), excited by bursts of white noise or dust noise.
• Modal resonator (aka Rings' green mode), excited by a mallet or dust noise.
• Analog kick drum emulation (two flavors).
• Analog snare drum emulation (two flavors).
• Analog high-hat emulation (two flavors)

I/O and controls:

• 4 "CLICKKNOBS" that used as model selection buttons, main controls and attenuverters.
• 8 bicolor LEDs displaying the active model.
• Main frequency control, 8 octaves.
• Three dimensions of timbre control: harmonics, timbre, morph.
• Attenuverters for the timbre, morph, Harmonics and frequency modulation CV inputs.
• Timbre, morph and frequency modulation CV inputs are normalized to the internal EG.
• Model selection, harmonics, timbre, morph, FM CV inputs.
• Main V/O CV input, with a large input range (-3V to +7V).
• Trigger input, triggering an internal D envelope, or the exciter for the physical/drum models.
• Level CV input, controlling the internal digital low-pass gate, or acting as an accent control for the physical/drum models.
Technical characteristics:
• CV inputs: 100k input impedance, 4kHz, 16-bit.
• Audio outputs: 48kHz, 16-bit, DC-coupled.
• Cortex-M4 ARM processor.
