T-ZED Oscillator

Analogue through-zero phase modulation oscillator

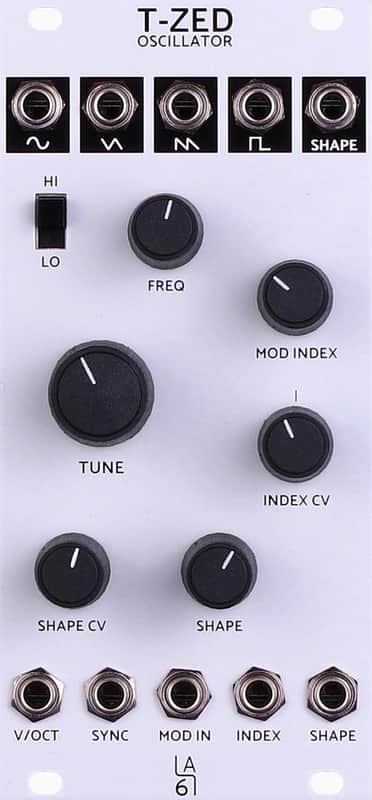

An analogue oscillator with through-zero phase modulation. The core of the T-ZED is the SSI2130 integrated circuit. Voltage controlled wave shape and phase modulation index allow for automated sonic versatility, and 2 separate frequency ranges mean the T-ZED can be used as an audio or CV source.

Features:

• Simultaneous SINE, TRIANGLE, SAW, SQUARE, and variable SHAPE outputs • Phase MOD input with bipolar INDEX circuit • V/OCT input tracks 10 octaves

• FREQ spans 10 octaves, TUNE spans 1 octave • Hard SYNC input • SHAPE output (Sine to Triangle to Saw) with CV input and attenuator • Frequency range HI: 10hz-25khz • Frequency range LO: 0,1hz-200hz

Technical Specifications:

•  12hp
• 25mm depth
• Current draw: 55mA/45mA  +12v/-12v
• Reverse power polarity protection
