TINRS Ardabil CV Processor

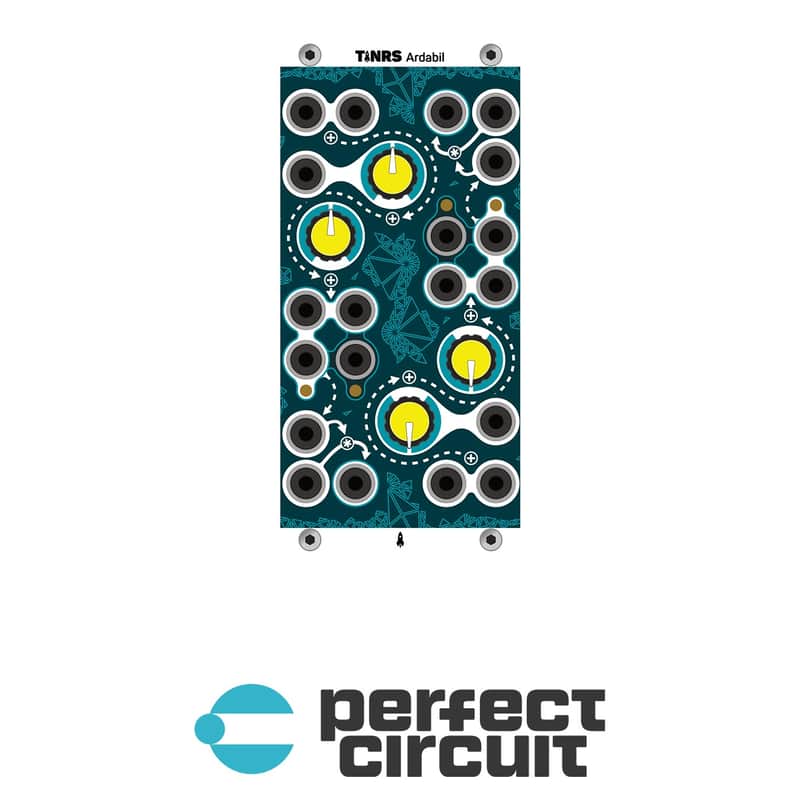

TINRS Ardabil shows you the thread of your signal in one integrated design. The overall pattern is composed of six functional elements in rotational symmetry. The basic design is relatively simple and the elements are well-balanced. Visual richness is added with contrasting background colours in the Danzer filler pattern and multiple large yellow knobs.

Precision adder: Your thread starts with two CV inputs that add together without changing their scaling.

Attenuverter: You can plug in any CV and let the knob scale your CV up or down -1 to +1 before it is added to your thread.

Offset: With this knob you can add a fixed -5V to +5V to your woven signal.

Buffered multiple outputs: Threads into three buffered outputs; one of which has an LED that lights up when there is a positive signal. The fourth jack is a buffered inverted output with a LED that lights up when there is a positive signal (which is a negative signal in the other three outputs).

VCA: The CV input controls the volume of the audio input into the output. The CV input defaults to the signal from a buffered output.

Ardabil has second thread running independently upside down alongside it.
