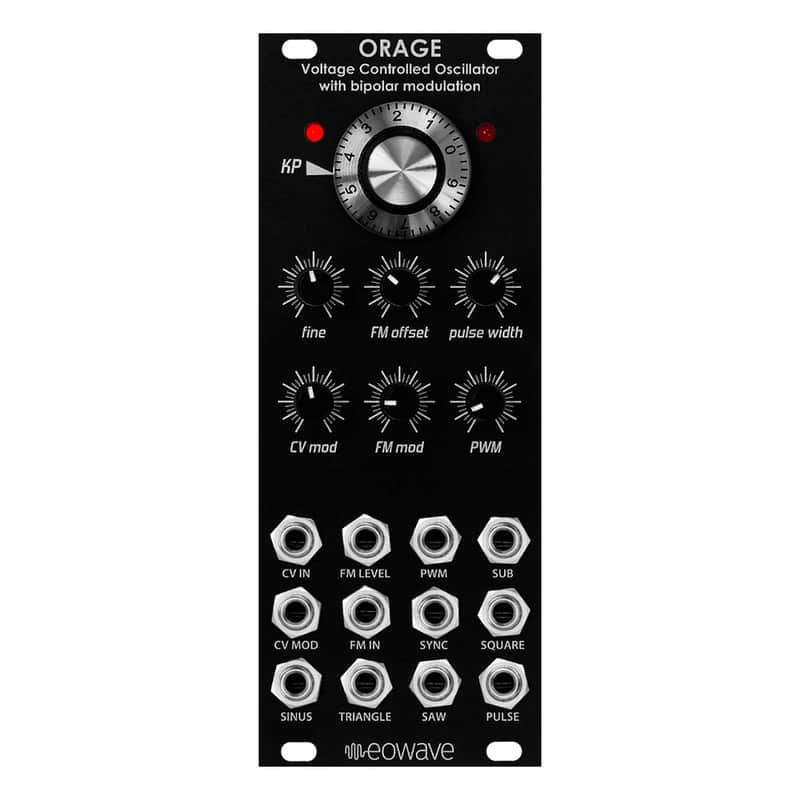

Eowave Orage VCO MKII Eurorack Oscillator Module

The Orage is a is a simple but powerful analog triangle core oscillator with 6 waveforms outputs wich enables different modulation types from thru zero FM synthesis, exponential modulations, pulsewidth modulation.

craft your very own sound:

• 5 classical Waveforms outputs: Choose from sine, triangle, sawtooth, pulse, and square waves to create a foundation for your sound.

• Sub-Oscillator Output: A 6th output provides a dedicated square low-frequency oscillator for rich bass tones and complex harmonic interactions.

• Pulse Width Modulation (PWM): Shape the pulse wave for timbral variations.

• Classical Fm modulation(CV mod): The CV input is waiting for your V/Oct signal and the CV mod is a standard exponential fm input.

• Thru-Zero Frequency Modulation (FM IN): When it’s modulated at audio rate, this FM input create a unique type of timbre.

• Voltage controlled modulation amount (FM LEVEL): Is an input allowing the CV control of amplitude of modulation of the « FM In » with an internal VCA. When a signal is plugged into it , The FM mod potentiometer act as an attenuator.

• Hard Sync: Is perfect to introduces sharp, percussive elements and harmonically complex relationships between your oscillators.
