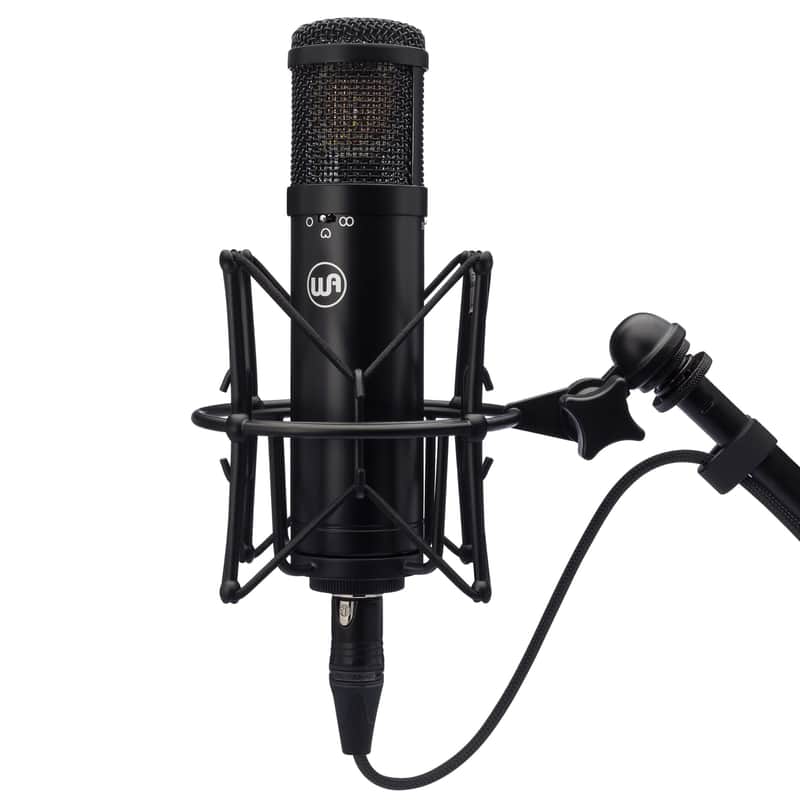

Warm Audio WA-47jr

At Palen Music Center, we are thrilled to offer the Warm Audio WA-47jr, a FET transformerless powerhouse that brings the legendary "47" sound to your studio without the vintage price tag. This microphone is built around a custom K47-style capsule reproduction—the same high-end component found in Warm Audio’s flagship tube model. By utilizing a fully discrete signal path featuring premium Toshiba FETs, Wima film capacitors, and Panasonic electrolytic capacitors, the WA-47jr delivers a boutique tonal signature that is both classic and remarkably clean. Whether you are tracking intimate vocals, aggressive electric guitars, or detailed orchestral strings, this versatile workhorse is designed to punch well above its weight class in any professional or home studio environment.

Please feel free to reach out to our knowledgeable sales staff with any additional questions!

  Highlights

Features a custom "True '47" k47-style capsule reproduction for authentic vintage tone.

Versatile recording with three selectable polar patterns: Cardioid, Figure-of-Eight, and Omnidirectional.

Fully discrete, transformerless signal path utilizing high-quality Toshiba FETs and Wima capacitors.

Engineered for high-SPL sources up to 157dB, making it ideal for everything from soft vocals to loud drums.

Includes a comprehensive accessory bundle with a shockmount, hard mount, and zipper storage pouch.

  Specifications

Microphone Type: FET Transformerless Condenser

Capsule: Custom WA-47-B-80v; Gold Sputtered, Dual Large Diaphragm, Single Backplate

Diaphragm Makeup: 6 Microns NOS Mylar (PET Film)

Polar Patterns: Cardioid, Figure-of-Eight, Omnidirectional

Frequency Range: 20Hz–20kHz

Max SPL: 147/157dB (@1kHz, 1kOhms 0.5% THD, 0/-10dB)

Pad: -10dB

High-Pass Filter: 70Hz

Sensitivity: 10mV/Pa or -40dB

Output Impedance: 100 Ohms

Rated Load Impedance: ≥1kOhms

Self-Noise: 9dBA

Equivalent Noise: 10dBA (IEC651)

Dynamic Range: 138dBA

Weight: 1.1 lbs

Dimensions: 210mm (Length) x 52mm (Diameter)

Included Accessories: Shockmount, Hard Mount, Zipper Storage Pouch

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • WA-47jr Large Diaphragm Multipattern FET Condenser Microphone
Finish
  • Black
Categories
Microphone Type
  • Large-Diaphragm Condenser
Polar Pattern
  • Multipattern
Wired/Wireless
  • Wired
Electronics
  • Analog
  • Solid State
