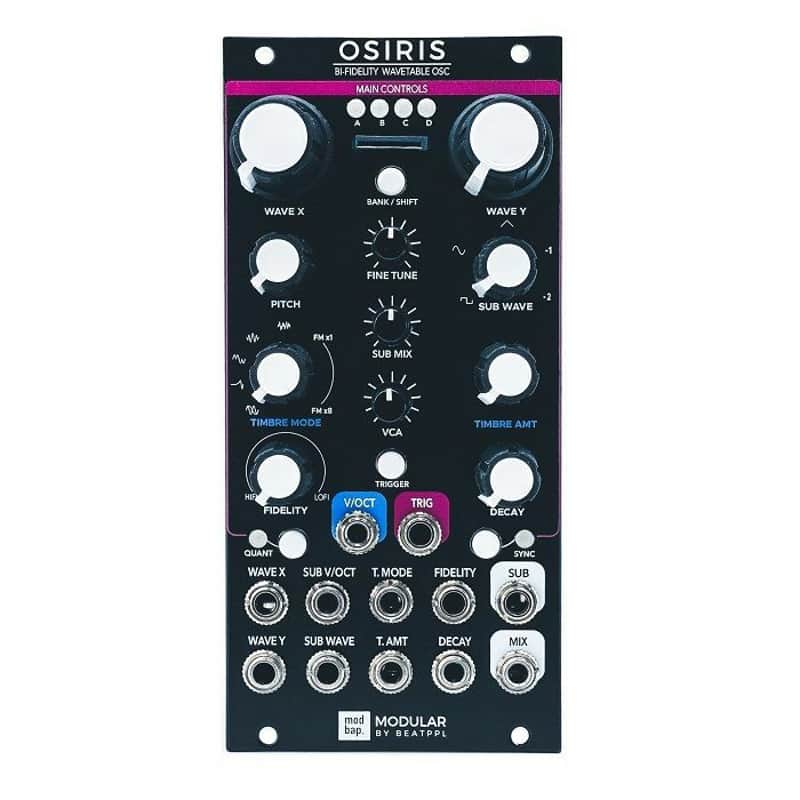

Osiris is a powerful and neatly packed 12hp bi-fidelity ™ wavetable oscillator with 6+ timbre modes including various waveshaping and phase modulation, an independent sub-oscillator, LoFi processing, extensive cv modulation capabilities, a pitch quantizer, 4 banks of 32×32 wavetables each, the ability to load user wavetables via micro sd card (not included) and it's own free open-source wavetable editor (OsirisEdit). Osiris is designed to be used as a powerful bi-fidelity ™ wavetable oscillator with an added sub-oscillator. The sub-oscillator has its own v/oct, mix knob, and mono output. If the sub-oscillator output is not patched, the sub-oscillator output is normalized to the mix out. Essentially, the sub-oscillator can act as its own independent oscillator allowing Osiris to be utilized as two separate oscillators. Osiris was developed in collaboration with Ess Mattisson of Fors. Timbre Modes Unison - Layers a second oscillator that detunes from slight beatings up to an octave. Bend - Compresses the waveform to a thinner shape Fold - Introduces symmetric 2-stage wave folding by first mirroring the waveform and then folding it Sync - Repeats the cycle count of the waveform within a Hanning window, making the edges soft Noise- Adds window-synced noise to the waveform phase FM x 1 - Applies phase modulation to the oscillator using the same waveform FM x ....8 - The FM scans through a ratio of 1 up to a ratio of 8 smoothly, with mixed stages in between Features User wavetables via Micro SD Card (card sold separately - not included) Built on the daisy platform for easy updates, speed, and stability. CV control over all major parameters Sync button (resets the wave on the trigger) Decay parameter Pitch quantizer VCA with trig input Sub Oscillator OsirisEdit ( Osiris edit runs on Mac and Linux (minimum requirement MacOS Catalina version 10.15 and above). Tech Specs Width: 12HP Depth: 28mm Power: 50mA +12V, 50mA -12V (64mA Peak on Power Up)
