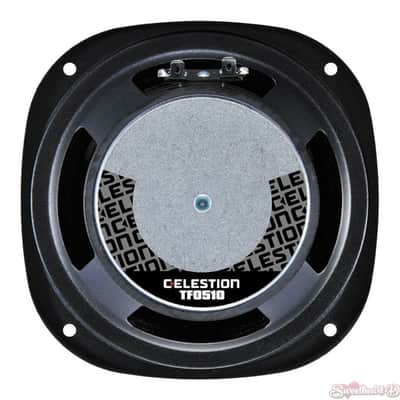

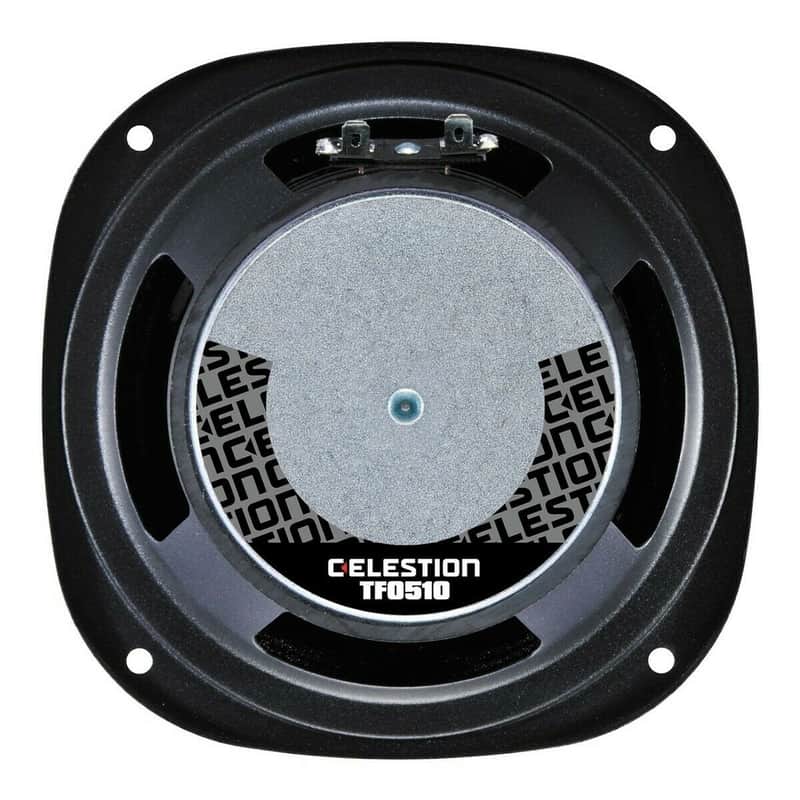

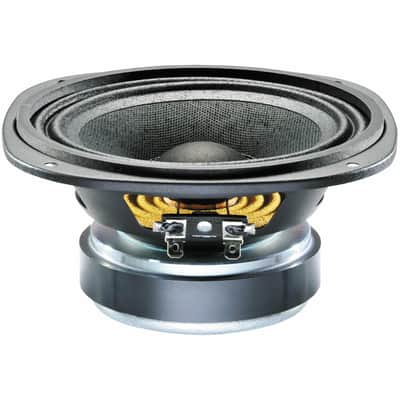

Celestion TF0510 5-inch Mid-Range 8 Ohm 30W RMS Speaker
Price$79.99
Free Shipping
Free Shipping
from Spencer, MA
Only 1 left
Grab it before it's gone
Listed:over a month ago
Views:203
Saves:3
Spencer, MA, United States
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
Overview
Multi-purpose 5" speaker drive unit delivering clear bass and mid frequencies.
General Specifications
- Nominal diameter: 127mm/5in
- Power rating: 30Wrms
- Continuous power rating: 60W
- EIA power rating: 50W
- Nominal impedance: 8 Ohms
- Sensitivity: 91dB
- Frequency range: 130-8,000Hz
- Voice coil diameter: 25mm/1in
- Chassis type: Pressed steel
- Magnet type: Ferrite
- Magnet weight: 0.37kg/13oz
- Coil material: Round copper
- Former material: Polyimide
- Cone material: Kevlar loaded paper
- Surround material: Cloth-sealed
- Suspension: Single
- Xmax: 1.1mm/0.04in
- Gap depth: 5mm/0.20in
- Voice coil winding width: 7.3mm/0.29in
Small Signal Parameters
- D: 0.10m/3.94in
- Fs: 128.1Hz
- Mms: 7.02g/0.25oz
- Qms: 2.376
- Qes: 0.768
- Mmd: 5.3g/0.187oz
- Qts: 0.6580
- Re: 6.32?
- Vas: 7.38lt/0.26ft3
- BI: 6.82Tm
- Cms: 0.22mm/N
- Rms: 2.38kg/s
- Le (at 1kHz): 0.33mH
Mounting Information
- Overall diameter: 136 x 151mm/5.35in x 5.94in
- Overall depth: 68mm/2.68in
- Cut-out diameter: 117mm/4.61in
- Mounting slot dimensions: Ø 4.5mm/0.18in
- Number of mounting slots: 4
- Mounting PCD range: 140mm/5.51in
- Unit weight: 1.0kg/2.2lb
