Otodel, from Kanagawa, next of Tokyo, is manufacture of musical instruments, specialized for effector, power-supply and cables. High quality, affordable price and realized our dreams such as all our want.

【Features】

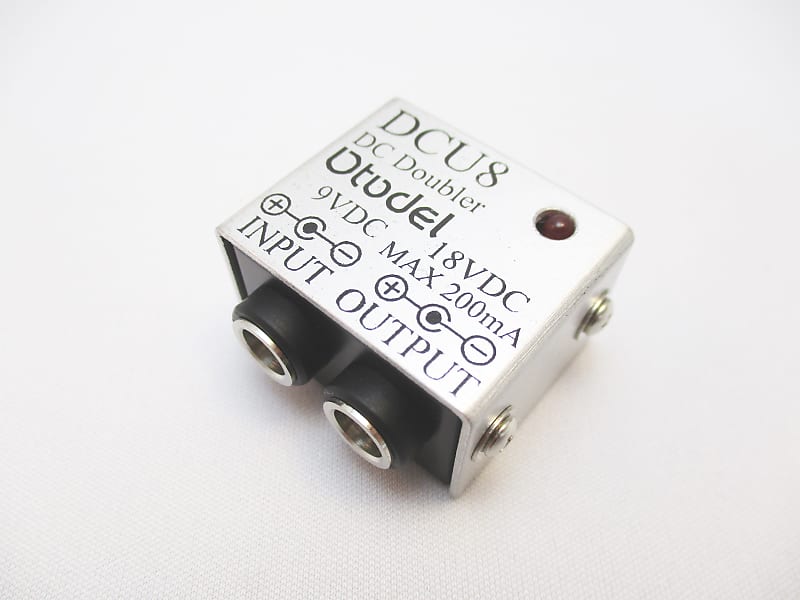

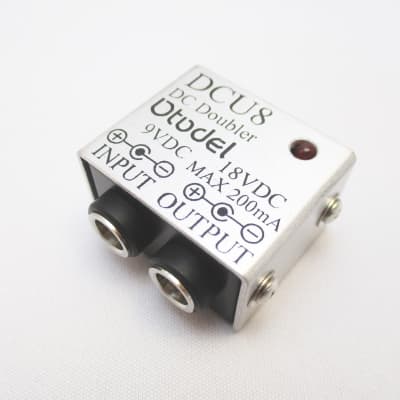

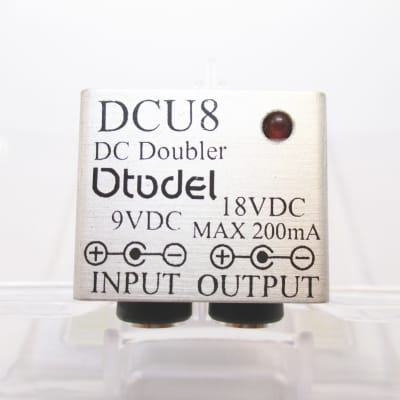

OTODEL DCU8 is Ultra small 9VDC to 18V voltage booster.
It is a simple, small, low noise step-up device that can take out 18VDC from OUTPUT simply by connecting a 9VDC power supply to INPUT.

【CAUTION】
・DO NOT open the lid, disassemble and modify this product.
・ Discontinue use in case of abnormal heat generation or malfunction.
・ Please use this device correctly. Incorrect use may result in malfunctions and injuries.
・DO NOT input a power supply with different voltage and incollect current. Also, DO NOT connect the output to an effector or other device that is not in accordance with the specifications.
・Please contact the dealer or the manufacturer when the case of defective or malfunction.

【How to use this device】

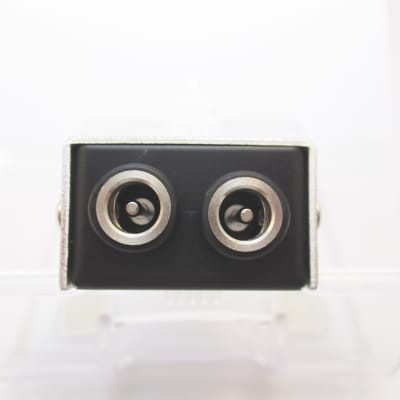

・Connect 9v DC center negative power supply which accordance with the specifications in to 9VDC input jack .
・Connect an effector or other device which accordance with the specifications in to 18VDC output jack .
・The LED lights up when it is operating normally. The LED lights turn off and protective function works when over-current or short circuit. The LED light up again when go back to normally.
※ DO NOT USE THIS DEVICE WITH OTHER DEVICES THAT IS NOT IN ACCORDANCE WITH THE SPECIFICATIONS.

【Specs】
■INPUT 9VDC(CENTER NEGATIVE ONLY)
※Recommendation…Use a power supply adapter that can use a current 2.5 times or more than the operating current of the output.For example, if the output current is 200mA, use a power supply with a maximum operating current of 500mA or more
■OUTPUT 12VDC±5%(CENTER NEGATIVE ONLY)MAX CURRENT 200mA
■Size:30(w)×25(d)×20(h)mm(Without Bumps)
■Weight:20g

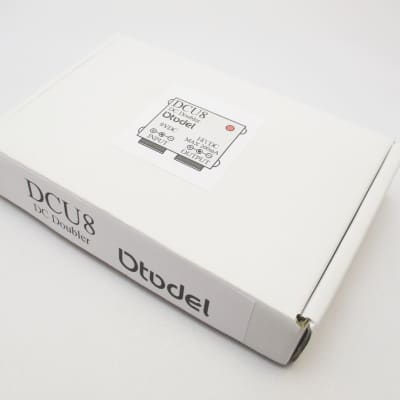

【Contents】
・DCU8 (This Device)
・ This manual
・Warranty (Valid only in Japan.)
・Rubber leg×4
