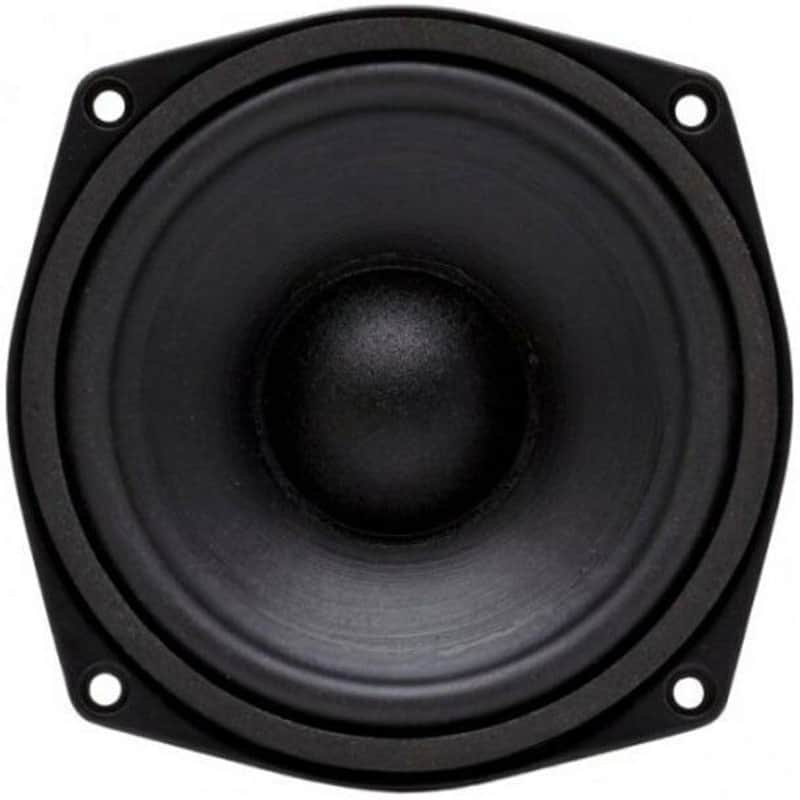

B&C 5NDL38 5" Professional Neodymium Midrange Speaker 8 Ohm

Overview B&C's 5NDL38 5" speaker was designed for professional midrange applications that require high output and low distortion. The 5NDL38's powerful neodymium magnet reduces driver weight while maintaining superb efficiency, complemented by a short, low-mass copper voice coil.   Features

• Designed for midrange applications
• High-energy neodymium motor
• Copper shorting cap on pole piece extends HF response
• 1.5" copper voice coil on a fiberglass former
• 180 watt continuous program power
• 90.0 dB 1w/1m sensitivity

Specifications

• Nominal Diameter5"
• Power Handling (RMS)90 Watts
• Power Handling (max)180 Watts
• Impedance8 ohms
• Frequency Response90 to 7,000 Hz
• Sensitivity90 dB 1W/1m
• Voice Coil Diameter1.5"

Thiele-Small Parameters

• Resonant Frequency (Fs)92 Hz
• DC Resistance (Re)6 ohms
• Voice Coil Inductance (Le)0.35 mH
• Mechanical Q (Qms)11
• Electromagnetic Q (Qes)0.5
• Total Q (Qts)0.48
• Compliance Equivalent Volume (Vas)0.12 ft.³
• BL Product (BL)8.5 Tm
• Diaphragm Mass Inc. Airload (Mms)11g
• Maximum Linear Excursion (Xmax)3.3 mm
• Surface Area of Cone (Sd)95 cm²

Materials of Construction

• Cone MaterialCoated Paper
• Surround MaterialRubber
• Voice Coil Wire MaterialCopper
• Voice Coil FormerFiberglass
• Magnet MaterialNeodymium

Mounting Information

• Overall Outside Diameter5.9"
• Baffle Cutout Diameter4.8"
• Depth2.95"
• Bolt Circle Diameter5.6"
• # Mounting Holes4
