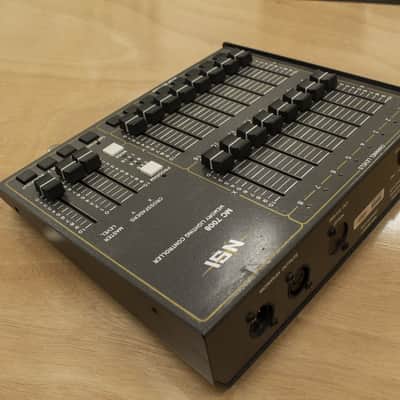

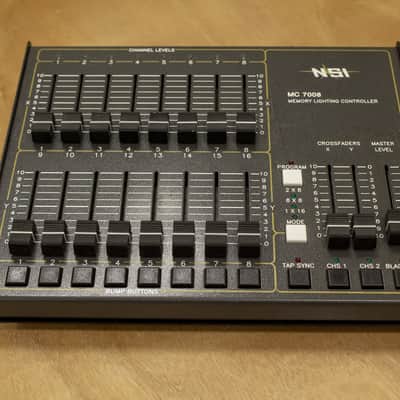

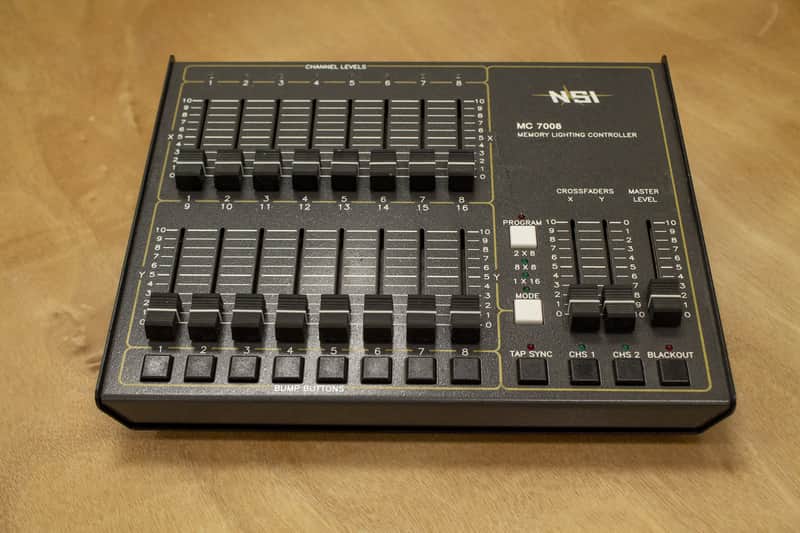

NSI MC 7008 Memory Lighting Controller

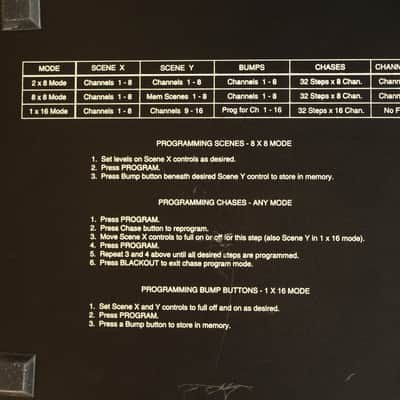

NSI lighting controllers are consoles that work with any NSI Microplex lighting system- no matter the age. The NSI/Leviton MC7008 Lighting Console is simple and flexible, with three operating modes. It provides two-scene preset operation, single scene wide mode for double channel capacity, and memory scene operation. Easy to program and operate; instructions are silkscreened on the back of the units. An added benefit of NSI systems is that it allows components of your lighting system to be interconnected by way of standard 3-conductor microphone cables or audio snakes. Up to 128 individual control signals may be transmitted to dimmer packs through a single microphone cable and the returned phantom power eliminates the need for AC power cords on NSI controllers. Can be used with NSI Dimmers.

This lighting controller works and is in great condition. As we have been using a 3-conductor microphone cable to provide power, we are not selling this with a power cord. We also have two NSI light dimmers for sale as well (separate listing). For those who are interested in buying both one or both of the dimmer units as well as the memory lighting controller, send us a message and we can discuss pricing and shipping costs.

Features:

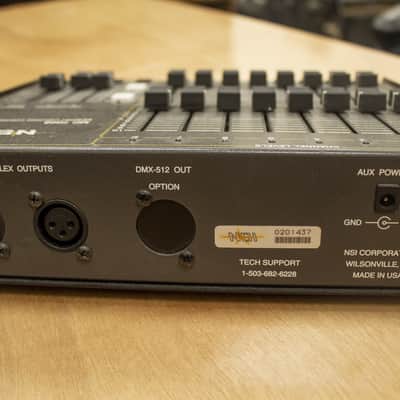

• MX512 (5-Pin XLR) control is built-in -- also supplied with NSI Micro-Plex (3-Pin XLR) control.
• Two user-programmable 32 step chase patterns, 16 individual control channels, 8 flash memory scenes in wide mode.
• 8 x 8 individual control channels in 2-scene mode
• Eight individual control channels, eight user-programmable memory scenes in memory mode.
• Tap sync button allows chase rate to be adjusted on-the-fly.
• Dual split cross-faders allow even fades from scene to scene.
• Master slide level, plus blackout button are built-in.

Listing for the NSI Light Dimmers can be found here: https://reverb.com/item/44667583-nsi-dds-5600-digital-dimming-system

The user manual can be found online here:
