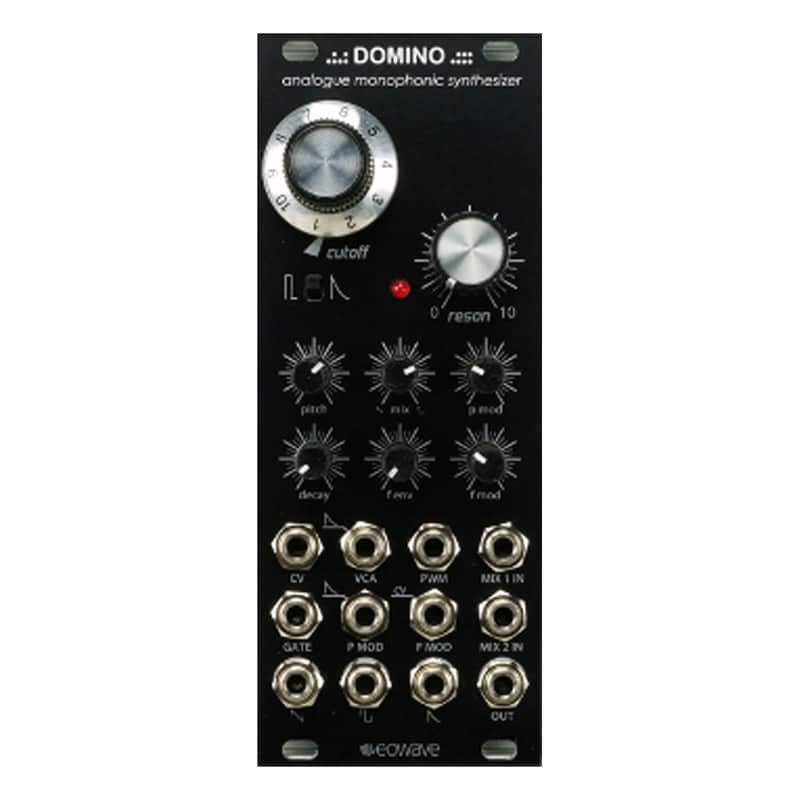

Eowave Domino Eurorack Synth Voice Module

The Domino is a redesign of its desktop synth bigger brother. Packing a full-featured synthesizer voice into 10HP, the Domino includes a saw/square wave oscillator, ladder type low pass filter, decay envelope and VCA. A plethora of patching possibilities makes this module a keen choice for portable systems, and those looking for deep sonic crafting within a tight HP space. Pair with a sequencer for instant basslines and acid lead lines, add some modulation to unlock the full sound design potential
Using the pitch knob, the tuning range is 1 octave, designed to be used primarily in lower ranges. Middle position of the pitch knob is 110khz (A2) after calibration - this can be adjusted at home using the vco_tune trimmer
Controls
- Cutoff - filter frequency
- Res - filter resonance
- Switch - switches between gate>VCA to envelope>VCA
- Pitch - pitch tuning
- Mix - blend saw and square waves
- P Mod - pitch modulation attenuator
- Decay - envelope decay
- Filter Envelope - modulation amount, pre-patched from envelope to filter
- F Mod - filter cutoff modulation attenuator
In
- CV
- VCA
- PWM (square wave)
- Mix 1 in - input for external oscillator/sound source to replace saw wave
- Gate - gate in
- P Mod - pitch modulation, pre-patched to envelope
- F Mod - frequency modulation for filter cutoff, pre-patched to CV in
- Mix 2 in - input for external oscillator/sound source to replace square wave
Out
- Saw
- Square
- Env - envelope output
- Out - out from VCA

Tech Specs
- Complete synth voice
- Oscillator with square/saw waves
- Ladder type low pass filter
- Decay envelope
- VCA
- 10HP
