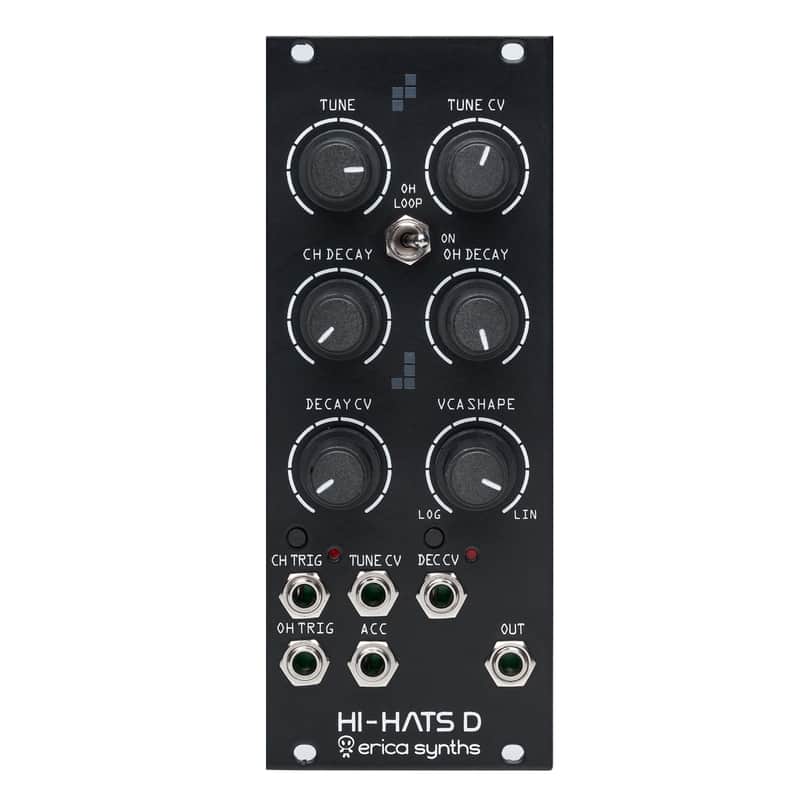

Hi-Hats D is Erica Synths take on classical digital hi-hats. Instead of using an integrated circuit DAC chip Hi-Hats D are using 6-bit discrete DAC for that unmistakable crunchy sound. For amplitude shaping samples are passed trough AS3330 based VCA and are controlled with an analog envelope generator for versatile and snappy sound. Extra feature is Open Hi-Hat looping – when it’s on, a certain part of the sample is looped while the envelope decay is on, thus creating distinct, delay-like effect.

Features

  • Discrete DAC
  • Analog VCA and EG
  • Tune and Decay controls
  • CV control with an attenuators over Tune and Decay
  • VCA response control
  • Open HiHat looping
  • Manual trigger
  • Accent for better expression
  • Erica Synths Drum Sequencer has connectors for internal Trigger and Accent connections to Erica synths Drum modules. The connections are made via six wire ribbon cables with 2x3 connectors (similar to Eurorack PSU connectors), and you can save some patch cables if you have a lot of Erica Synths Drum modules. Internal connections will work only with Erica Synths modules and no other manufacturer module will support this functionality. If you have Erica Synths Drum Sequencer and other Erica Synths Drum modules and want to use internal connections, select “Hi-Hats D with internal connectors” option. If you do not want to use internal connections, select cheaper “Hi-Hats D without internal connectors” option.
  • Audio output level -5...+5V
  • CV level (full span) -5 - +5V
  • Accent CV level 10V
  • Tigger level 5V
  • Tigger time 1ms
  • Power consumption 56mA @ + 12V, 35mA @ -12V
  • Module width 10HP
  • Module depth 45mm

ÉtatNeuf (neuf)
Le matériel en état « Neuf » n'est vendu que par un vendeur autorisé ou un fabricant et inclut l'emballage d'origine.En savoir plus
Marque
Modèle
  • Hi-Hats D
Catégories
Horizontal Pitch
  • 10HP
Synth Module Function
  • Batterie et percussion
Format synthé modulaire
  • Eurorack
