Otodel, from Kanagawa, next of Tokyo, is manufacture of musical instruments, specialized for effector, power-supply and cables. High quality, affordable price and realized our dreams such as all our want.

【Features】

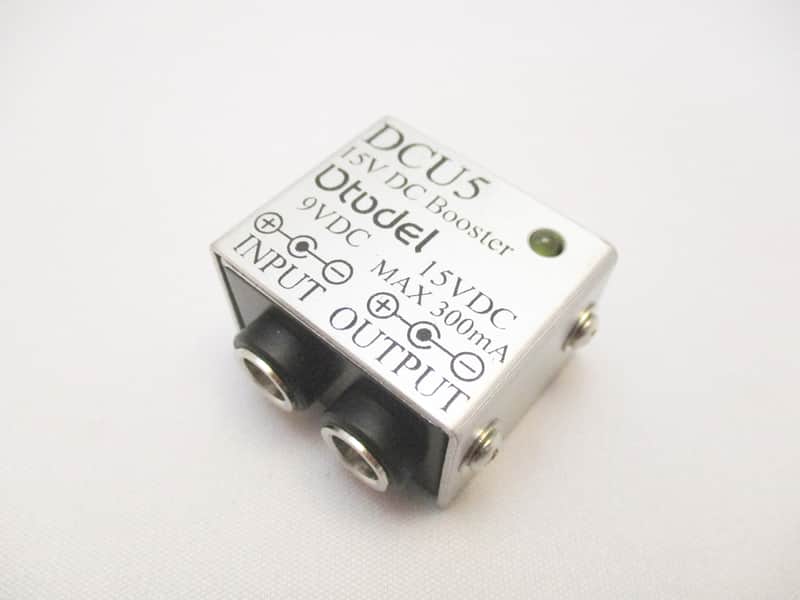

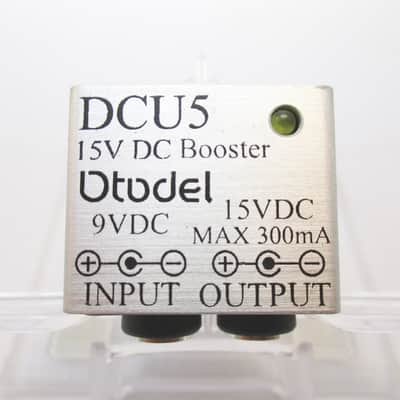

OTODEL DCU5 is Ultra small 9VDC to 15V voltage booster.
It is a simple, small, low noise step-up device that can take out 15VDC from OUTPUT simply by connecting a 9VDC power supply to INPUT.

【CAUTION】
・DO NOT open the lid, disassemble and modify this product.
・ Discontinue use in case of abnormal heat generation or malfunction.
・ Please use this device correctly. Incorrect use may result in malfunctions and injuries.
・DO NOT input a power supply with different voltage and incollect current. Also, DO NOT connect the output to an effector or other device that is not in accordance with the specifications.
・Please contact the dealer or the manufacturer when the case of defective or malfunction.

【How to use this device】
・Connect 9v DC center negative power supply which accordance with the specifications in to 9VDC input jack .
・Connect an effector or other device which accordance with the specifications in to 15VDC output jack .
・The LED lights up when it is operating normally. The LED lights turn off and protective function works when over-current or short circuit. The LED light up again when go back to normally.
※ DO NOT USE THIS DEVICE WITH OTHER DEVICES THAT IS NOT IN ACCORDANCE WITH THE SPECIFICATIONS.

【Specs】
■INPUT 9VDC(CENTER NEGATIVE ONLY)
※Recommendation…Use a power supply adapter that can use a current twice or more than the operating current of the output. For example, if the output current is 300mA, use a power supply with a maximum operating current of 600mA or more
■OUTPUT 12VDC±5%(CENTER NEGATIVE ONLY)MAX CURRENT 300mA
■Size:30(w)×25(d)×20(h)mm(Without Bumps)
■Weight:20g

【Contents】
・DCU5 (This Device)
・ This manual
・Warranty (Valid only in Japan.)
・Rubber leg×4
