Konstant Lab - PanoramaMIX - Eurorack module

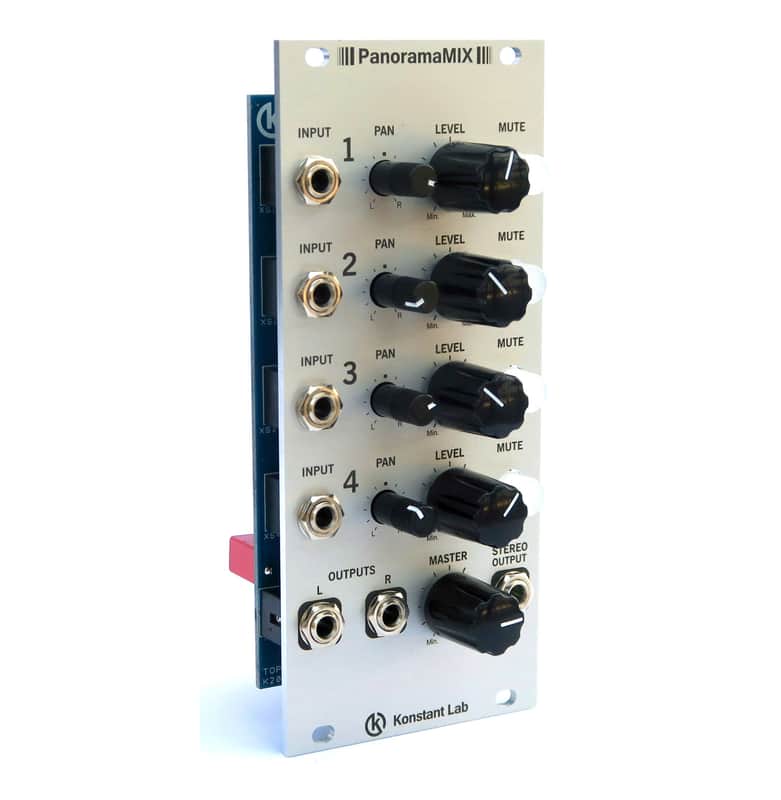

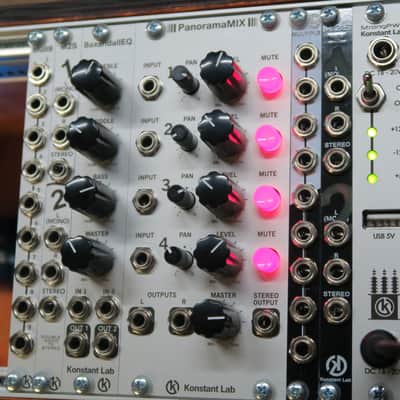

PanoramaMIX is a high-quality four-channel mix module. This eurorack mixer module ensures premium sound quality by using hand-selected quality components and perfect circuit topology. There are four mono input channels with enough gain to drive most of your audio sources. Each channel features volume, PAN and MUTE functions. Mute knob emits red light when it’s activated. There are Left and Right output mono jacks also as a stereo jack with amplifier allowing you to drive your headphones. You can also use PanoramaMIX as a headphone amplifier or output module to monitor your mix. This module is an ideal tool for setting up various sound design applications relying heavily on stereo processing. Make stereo sound from your mono modules.

Are four channels not enough for you? No problem! You can expand PanoramaMIX with its own bus to 8 – 12 – 16 – 20 configuration. Just add another PanoramaMIX, connect two or more modules together and you have a multichannel mixer with one master output and several subgroup outputs. Ideal for mixing your down your whole modular system. There is also power-sharing via an internal bus between mix modules implemented.

Technical specs:

POWER: +12V 35mA typ. / 60mA max., -12V 35mA typ. / 60mA max.

FREQUENCY RANGE: 10 Hz – 30 kHz / ± 1 dB,  5 Hz – 50 kHz / ± 3 dB

THD (Total Harmonic Distortion): 0,006 % [ 1 kHz, Output Level 0 dBm ( 0,775 Vrms ) ]

SNR (Signal To Noise Ratio): >110 dB [ BW 20 kHz ]

GAIN: >15dB

MAX OUTPUT VOLTAGE: 7V rms

MUTE ATTENUATION: >90dB

PAN ATTENUATION RANGE: from -60 dB to +2 dB

WIDE: 11HP

DEPTH: 25mm
