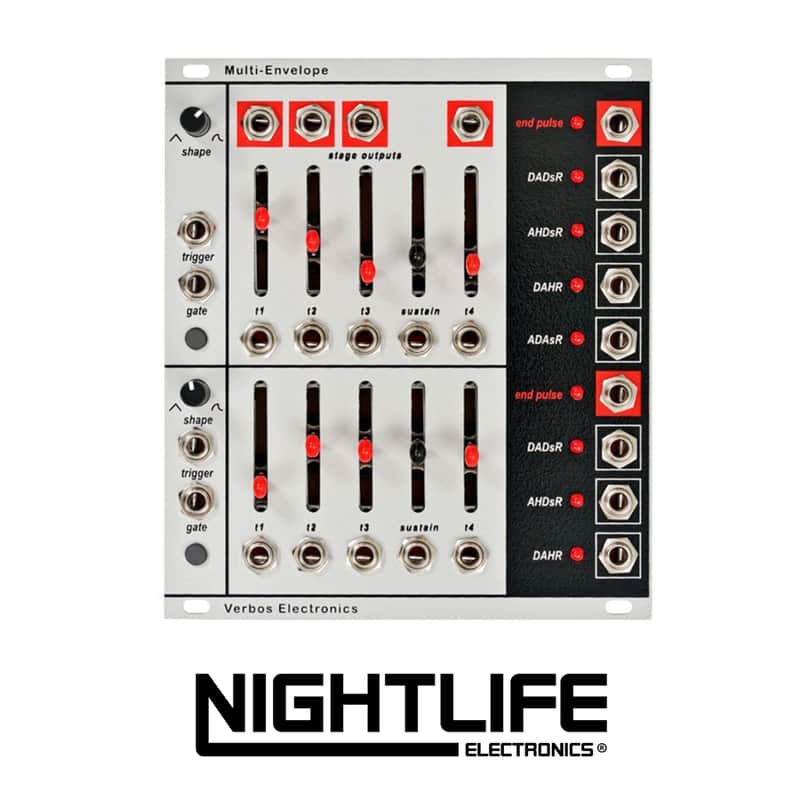

Reimagining the envelope generator, several shapes of 4 stage functions are available simultaneously on each of the two parts in the Multi-Envelope. From the same set of controls and voltage control inputs, each shape has its own dedicated output. All at the same time... Delay Attack Decay Sustain Release, Attack Hold Decay Sustain Release, Delay Attack Hold Release and (on the upper generator) Attack Decay Attack Release. End pulse outs allow chaining and looping. Gate and Trigger inputs can be used alone or together to control re-trigger characteristics. The "shape" control blends continuously from linear ramps to RC curves typical of East Coast Synthesis, without changing the overall time. The upper generator also has gate outs that are high during each stage.

• Width: 22HP
• Depth: 24mm
• Power: 90mA @ +12V / 60mA @ -12V

Features:

• Simultaneous Envelope Shapes: Offers multiple 4-stage function shapes simultaneously across two parts.
• Dedicated Outputs: Each envelope shape has its own dedicated output, allowing for versatile routing.
• Multiple Envelope Types: Supports various shapes, including:
• End Pulse Outputs: Features end pulse outputs for chaining and looping of envelopes.
• Flexible Triggering Options: Gate and trigger inputs can be used alone or in combination to control re-triggering behavior.
• Shape Control: Continuously blends between linear ramps and RC curves typical of East Coast synthesis, without affecting overall timing.
• Gate Outputs: The upper generator includes gate outputs that are high during each envelope stage, providing additional modulation control.
