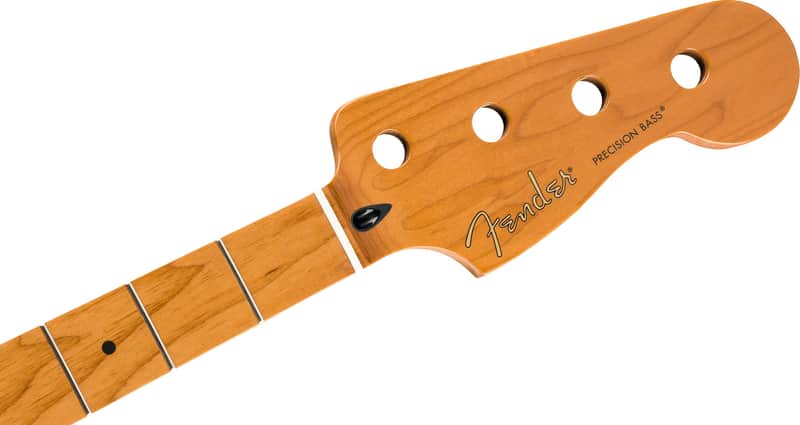

Genuine Fender Roasted Maple Precision Bass Neck, 9.5" Maple, C Shape
Manufacturers Part Number 099-0802-920

There’s no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument’s voice.

This genuine Fender Precision Bass neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring a comfortable "Modern C"-shaped profile and 9.5"-radius maple fingerboard with 20 medium-jumbo frets, this neck was designed for pure playability. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots. The perfect way to give your P Bass® authentic Fender feel, this replacement neck even sports our famous “spaghetti” logo on the headstock.

This replacement neck is for a Fender or Squier® by Fender guitar.

Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures.

Fingerboard Material Roasted Maple Fingerboard Radius 9.5" (241 mm) Neck Finish Satin Urethane Finish on Back, Gloss Urethane Finish on Front Neck Material Roasted Maple Neck Mounting 4-Bolt Neck Shape Modern "C" Neck Thickness 1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm) Number of Frets 20 Nut Material Synthetic Bone Nut Width 1.625" (41.3 mm) Position Inlays Black Dot String Nut Synthetic Bone Truss Rod Standard Truss Rod Nut 3/16" Hex Adjustment

    IMPORTANT PLEASE READ NOTICE BELOW CAREFULLY:

    All necks require a minor level and polish and may need to be fine-tuned for your instrument. This is perfectly normal and not a defect. Because of the variety of set up preferences out there, we leave that to you.

    All necks should be carefully inspected prior to installation and/or modification as the neck is rendered non-returnable once altered. All wood is considered unique with individual growth patterns. Some necks may have minor grain variations due to the organic nature of wood. These are not seconds or "blems". Please contact customer service if you have any questions or concerns about your neck when it arrives. We cannot guarantee exact neck pocket fit due to varying manufacturer tolerances, wood shrinkage or expansion over time etc. Some neck pocket modification may be required.

    We recommend that if you are not familiar with the proper steps to replace a guitar or bass neck that you should contact a professional for assistance.>

    Buy with confidence from SportHiTech, an authorized Fender Parts Dealer.

    All Genuine Fender necks ship in Fender factory packaging.

    ConditionBrand New (New)
    Brand New items are sold by an authorized dealer or original builder and include all original packaging.learn more
    Brand
    Model
    • 099-0802-920 Roasted Maple Precision Bass Neck, 20-Fret
    Finish
    • Maple
    Categories
    Made In
    • Mexico
