Flame Mirror Unipolarinverter eurorack module.
Only 1 left
Grab it before it's gone
Our users rate Reverb

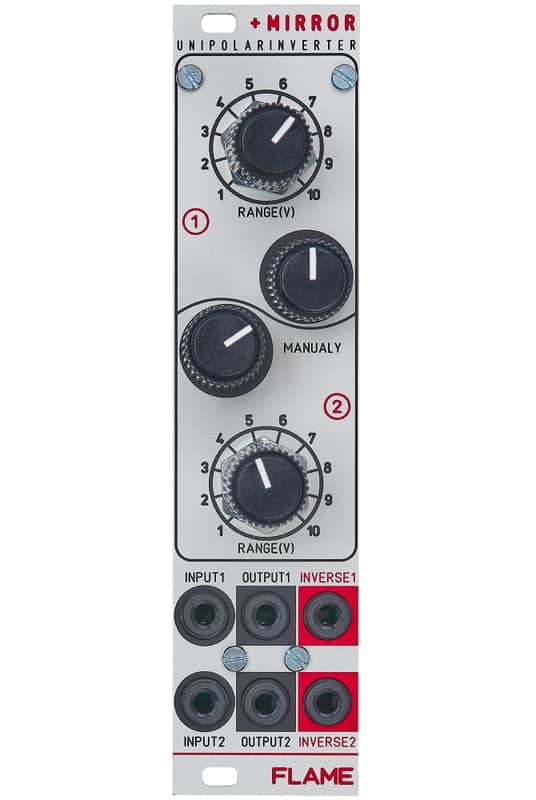

NEW Flame Mirror Unipolar inverter. This module inverts an applied positive voltage so that the maximum value becomes zero and zero becomes the maximum value. The input voltage is not inverted into the negative voltage range (mirror axis 0v) but mirrors a positive voltage around an adjustable axis within a fixed positive voltage range starting at 0v. There are 10 ranges, adjustable in 1V steps. The mirror axis is always at half of the set range. If no cable is plugged into the input socket, the output voltages can be regulated manually with the "Manually" potentiometer. The module has two similar function groups. Applications are for example the inversion within positive voltage ranges, GATE inversions (0/+5v to +5v/0v), or opposite melody lines. 6hp, 30ma, depth 40mm. Full warranty.
Reverb Buyer Protection
Reverb has your back if your item is lost, damaged, or doesn't match its description. Simply report any issues within 7 days and we'll help you get a full refund.Learn more about Reverb Buyer Protection.
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Made In |
|
| Synth Module Function |
|
| Analog / Digital |
|
| Horizontal Pitch |
|
