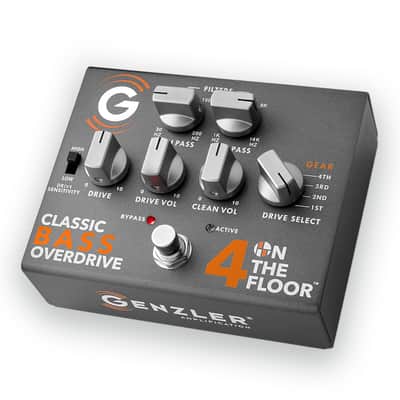

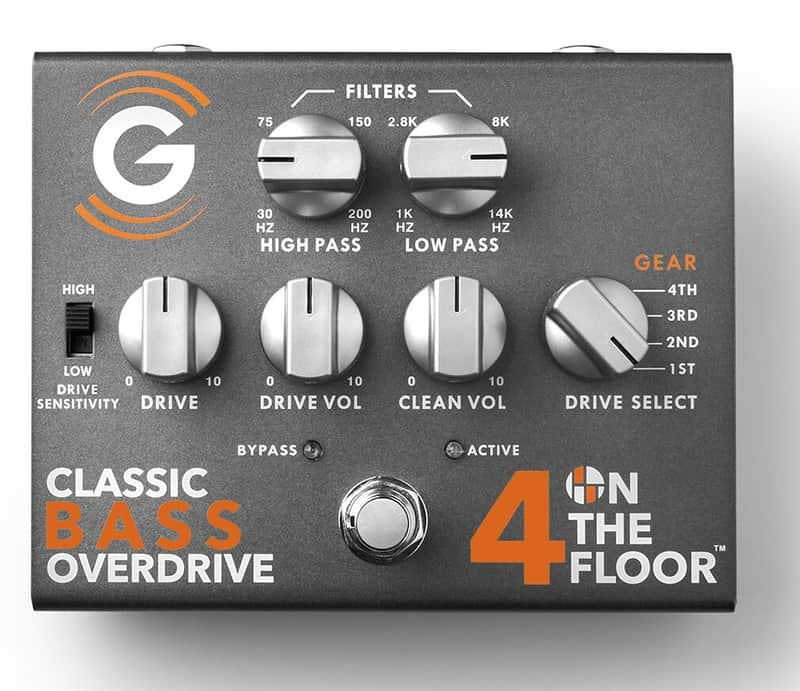

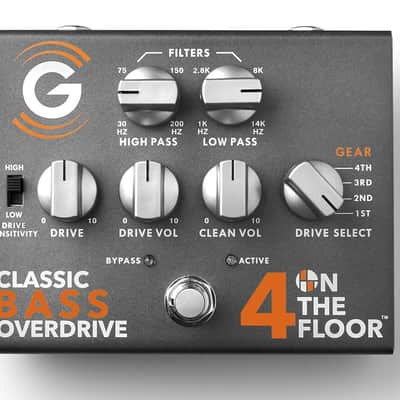

The 4 ON THE FLOOR™ Classic Bass Overdrive is an ALL ANALOG bass overdrive pedal that gracefully emulates 4 different overdrive types found in classic tube circuit topologies and then gives the player additional control over drive/gain, overdrive path (only) with high pass and low pass filters and separately a clean blend. The result is the ability to tailor and fine tune the overdrive to fit with a wide spectrum of music and playing techniques, without the loss of touch sensitivity, musicality, or the addition of induced excess noise.  This versatile pedal can be used as a clean boost, an “always on” tonal enhancement, or offering varied overdrive textures to shift through, for selected performance requirements.

Drive Select “Gear” Descriptions:

1st GEAR: Reminiscent of a tube amp’s clean channel (including natural harmonics) with a bit of overdriven tone when driven hard. A nice “always-on” selection.

2nd GEAR: Emulates a tube amp’s mildly overdriven tone, with a small amount of dynamically compliant clipping asymmetry. This is a natural feeling, touch sensitive algorithm with very mild compression that responds with more texture and complexity, the harder you dig in.

3rd GEAR: A more aggressive up-shift from 2nd gear, this moderate, asymmetrical overdrive is less compliant, with greater compression for a tighter feel.

4th GEAR: This is the most aggressive gear of all — a heavier, symmetrical, low compliance overdrive that can enter distortion territory when driven hard. While there are a lot of harmonics and compression present, this gear does not give up tone or feel.

With the versatility in overdrive algorithms and tonal options, the 4-OTF-PEDAL is an excellent compliment to either of our MAGELLAN 350 or MAGELLAN 800 bass amps.

Features:

• Lightweight Aluminum Chassis
• Rugged Stomp Switches
• Low-noise, Silent Switching Circuitry
• 4 Position Overdrive “Gear” Selector Switch
• High-Pass and Low-Pass Filters (Overdrive Engine Only)
• Parallel Clean Signal Path
• High/Low Drive Sensitivity Switch

Accepts Power Supplies From 9VDC – 18VDC (low noise type), Either Polarity (auto detecting) 40mA Max — (Power Supply Not Included)

Dimensions: 5”W X 4.1”D X 2.3”H

Weight: 1 Lbs.
