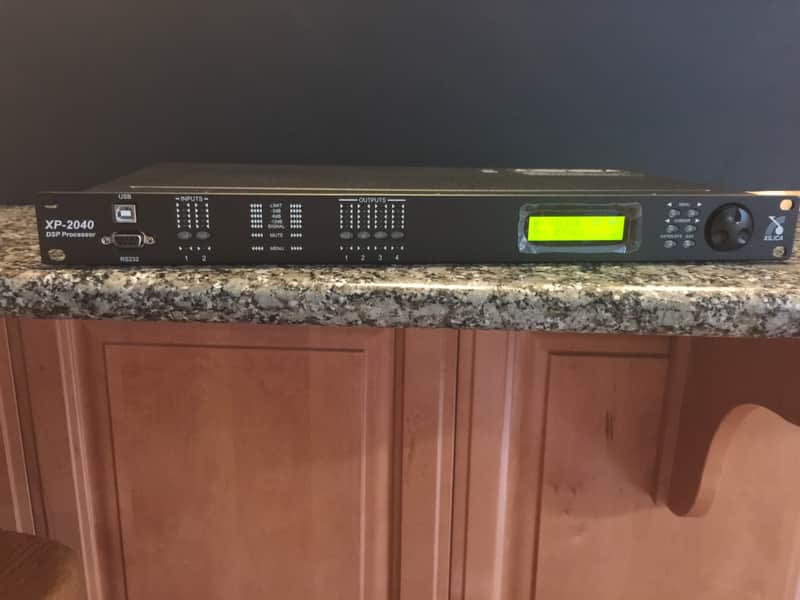

Xilica XP-2040 2018 Black

Xilica XP-2040: 2 input, 4 output DSP for crossover, room and speaker EQ duties



Designed and engineered in Canada, the Xilica XP provides a comprehensive set of digital signal processing (DSP) functionality based on 24 bit / 96Hz converters and 40 bit floating point algorithms. Available DSP routines include IIR crossover filters, parametric EQ, graphic EQ, delays, levels, matrix mixing and polarity. The result is best in class audio and DSP performance that is used by a select band of "in the know" speaker companies including Procella Audio and Legacy Audio.



DSP Capabilities:

Matrix Mixer - any input to any output

Crossover - 2 for each input and output, from 6-48dB/Oct with choice of Bessel, Butterworth, Linkwitz-Riley types

Flexible EQ - 8 band for each input and output with choice of parametric, high shelf. low shelf and phase correction. Per EQ bypass

Graphic EQ - 31 band, 1/3rd octave EQ for each input with global bypass

Gain per input and output

Mute per input and output

Polarity per input and output

Delays - up to 640ms per input and output



Specifications:

24bit 96kHz converters with internal 40 bit DSP

XLR inputs and outputs

Setup via front panel controls or via XConsole software which runs on both Windows (PC) and OSX (Mac)

Front panel button for per channel muting

2 line LCD screen

USB, RS232 and ethernet control

Designed in Canada

1u rack mount chassis
