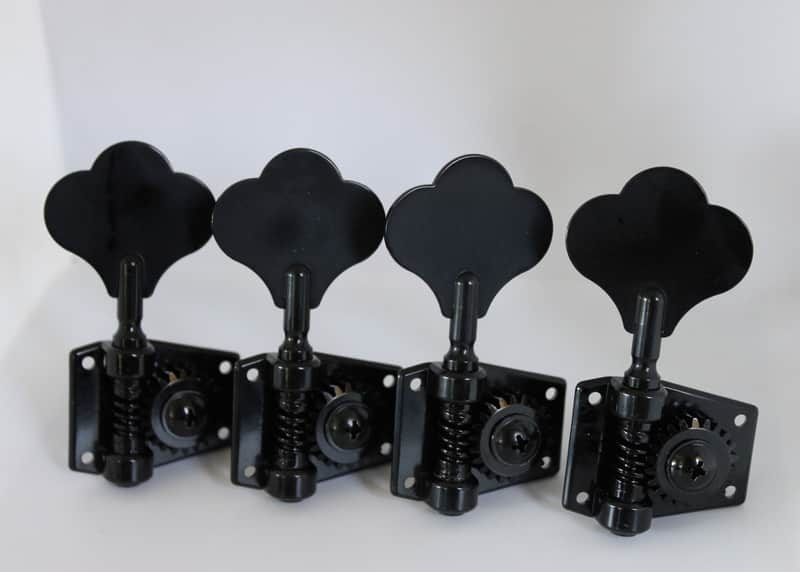

TGPS J & P Style - 4 In Line Set Black Tuners

Direct J & P style replacement "Elephant ear" 4 in line black bass tuners. 1:20 gear ratio with ultra-smooth action and full-size plates. Washer and mounting screws included.

Your project is our project!

Specs:

Bushing
Outside Diameter = 23/32” (0.721” or 18.3mm)
Inside Diameter = 9/16” (0.558” or 14.2mm)
Max Flange Diameter = 53/64” (0.823” or 20.9mm)
Tuner Handle
Width = 1-37/64” (1.582” or 40.2mm)
Tuner Post
Diameter = 17/32” (0.535” or 13.6mm)
Plate
Length = 1-45/64” (1.698” or 43.1mm)
Width = 1-5/16” (1.316” or 33.2mm)
Top Mounting Holes are 0.910” or 23.1mm apart.
Bottom Mounting Holes are 0.650” or 16.5mm apart
Diagonally from Top Hole to Bottom Hole = 1.352” or 34.3mm (holes measured center to center)
