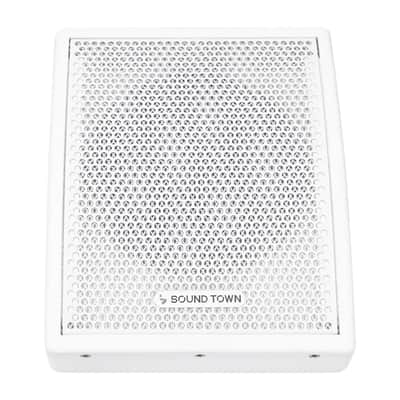

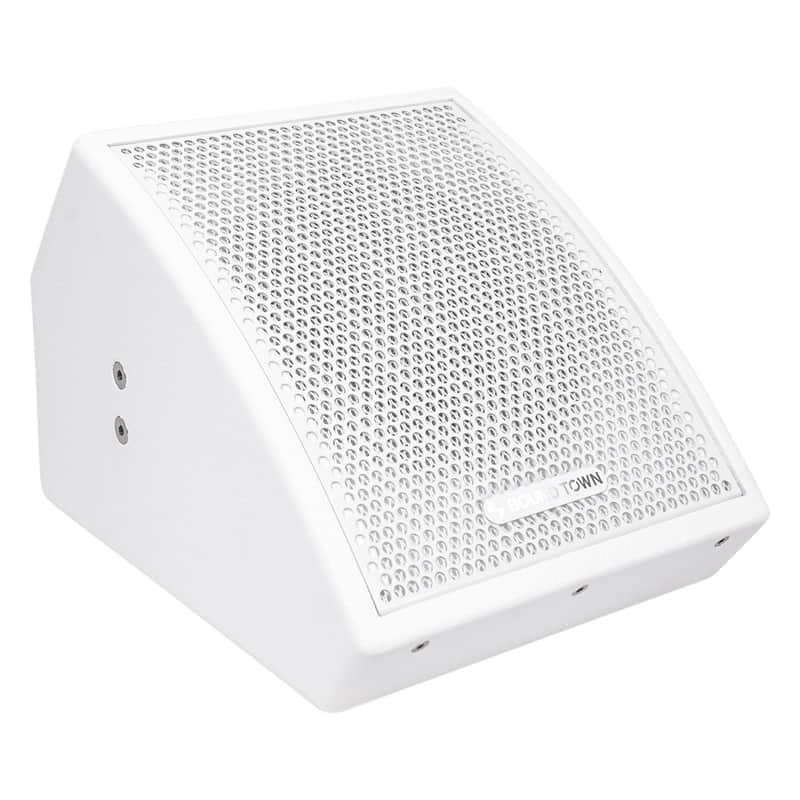

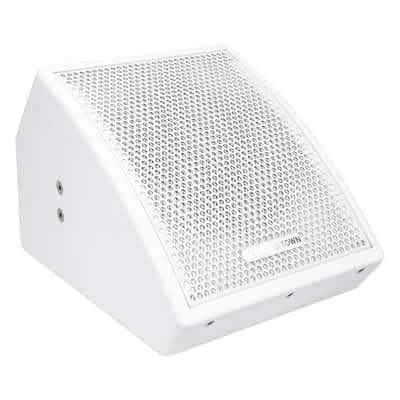

CARME-U8MW | CARME Series 8" Coaxial Passive 2-way Professional PA DJ Stage Monitor Speaker, White with U Mounting Bracket

The Sound Town CARME-U8MW is a passive 150 Watts stage and installation monitor speaker. Equipped with a customized high-efficiency coaxial driver, which includes one 8“ main driver and one 1” compression driver at the center, it delivers clear stellar sound in high sensitivity and characterized by smooth, flat frequency response coupled with low distortion, the even conical coverage is great for sound feedback on your stage.

The CARME-U8MW has a very compact low profile design which does not visually dominate stage. With the provided U bracket, it can also be surface mounted against wall, ceiling or corner. It’s ideal not only for live stage, but also for installations of churches, bars, restaurants, meeting rooms and auditoriums.

FEATURES

• PREMIUM SOUND AND EVEN COVERAGE: With a customized high-efficiency coaxial driver, which includes one 8“ main driver and one 1” compression driver at the center, the CARME-U8MW delivers centralized sound for consistent monitoring
• HIGH SENSITIVITY IN COMPACT DESIGN: The stage monitor’s high sensitivity allows you to use a small amplifier to obtain high output level. It handles 150W RMS power output and its low profile cabinet design does not visually dominate stage or installation venues
• MULTI-POSITION: With the provided U bracket, the CARME-U8MW can be surface mounted tightly against a wall, ceiling or corner, which provides great flexibility for different applications; It’s ideal not only for live stage, but also for installations of churches, bars, restaurants, meeting rooms and auditoriums
• STURDY CONSTRUCTION: The 5/8” textured and painted plywood provides great protection and stability with heavy-duty metal grille. The small form factor makes it easy to transport


SPECIFICATIONS

Model ,  Active / Passive Passive Frequency Range 55 Hz - 20 kHz Frequency Response 60 Hz - 20 kHz Sensitivity 96 dB (Passive) SPL Max 118 dB Dispersion 100° conical Configuration 8" full-range 2-way stage monitor w/ U mounting bracket Transducer LF: 1 x 8", HF: 1 x 1" coaxial compression driver Impedance 8Ω Power Handling 150W RMS / 300W Peak Cabinet Construction High-grade 100% birch plywood Mounting U bracket Finish Texture coating Grill & Rigging Component Steel with anti-corrosion coat Amplifier -- Input Speakon Output Speakon
Control -- Indicator -- Voltage -- High Frequency Driver Parts# -- Low Frequency Woofer Parts#

Dimension & Weight

Product Width (in.) 10.7" Package Width (in.) 16.5" Product Height (in.) 9.4" Package Height (in.) 14.1" Product Depth (in.) 13.3" Package Depth (in.) 12.6"
Product Weight (lb.) 19.8 lbs
Package Weight (lb.) 22.0 lbs

Warranty/Certifications

Manufacturer Warranty 1 Year
