Fender Esquire Wiring Harness + Pickguard Telecaster Conversion Kit 4 way switch CTS Pots

Price$79.62
+ $17.06 Shipping

Looks like someone already grabbed this gear!

Don't fret, we have plenty of gear for you.

Listed:over a month ago
Views:555
Watchers:13
Sold By
Steadfast Guitars
Winnipeg, Canada
(187)
Sales
90+
Joined Reverb
2014

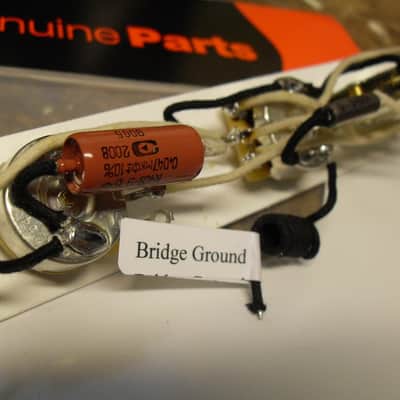

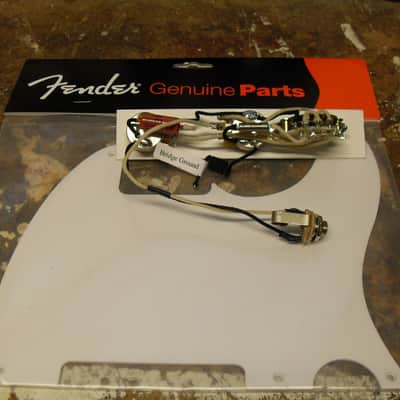

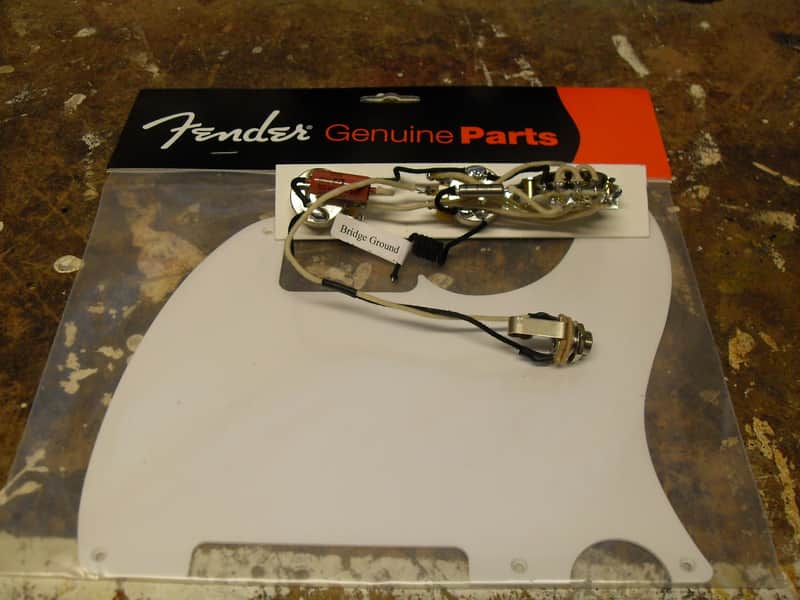

Here is a fantastic Esquire Wiring harness and Esquire pickguard.  This is all you need to convert your telecaster into an Esquire or if you're building your own Esquire this is the kit you'll need.  All you do is drop this harness in, wire you pickup to it and you're ready to go!  Here are the 4 way wiring harness specs:

Premium Esquire Wiring Harness 4 Way Switching with “Eldred Esquire Mod” - Cocked Wah Wiring Harness: Oak Grisgby 4 Way Switch, CTS Pots, Switchcraft #11 Output Jack, K40Y-9 .047μF & .0047μF NOS Russian Paper in Oil Capacitors

Excellent Quality Parts:

  • Oak Grigsby 4 Way Switch
  • CTS Solid Shaft 250K Audio Taper Pots Vintage Dishback Style
  • U.S.A. Spec. 3/8" bushing diameter x 3/8" bushing length Pots x 1/4" diameter shaft
  • .047uf 200v NOS Vintage Russian Paper in Oil Capacitor
  • .0047uf 200v NOS Vintage Russian Paper in Oil Capacitor
  • Switchcraft #11 Output Jack
  • Vintage Style 22 Gauge Cloth Covered Push Back Wire
  • Wiring Diagram Included

The Special 4-Way Eldred Esquire Mod gives you the following:

  • Switching position #1 – Straight to Output Jack – Maximum Twang
  • Switching position #2 – pickup is routed through the volume control only - hotter, louder lead sound with extra highs.
  • Switching position #3 – pickup routed through the volume and tone controls.
  • Switching position #4 – Eldred Esquire wiring, the pickup is routed through a single, small capacitor and volume control, with the tone control bypassed.

This Wiring Harness is drop in ready for your Esquire build or upgrade. Just solder in your pickup, ground your bridge, and you are ready to go.

The K40Y-9 is a high quality PIO capacitor made for Russian military. The conductor is made of aluminum foil and the dielectric is oil saturated paper, glass sealed in a metal body. These capacitors provide excellent sonic characteristics.

This is a great capacitor for Esquire or Telecaster builds or upgrades!

Pots are grounded to each other in case you are using this with a rear-rout body or non-conductive control plate.

This item is sold As-Described
